Tool (Number and name) |
Illustration |
Use |
|

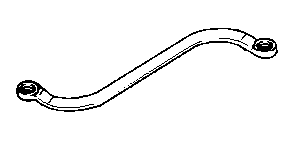

09793-21000 Door hinge adjusting wrench |
|
Adjustment, removal and installation of the door hinge |
|

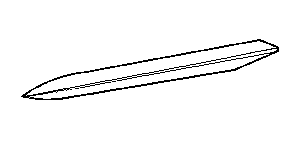

09800-21000 Ornament remover |
|
Trim removal |
|
09853-31000 Head lining clip remover |
|
Removal of the head lining clips |
|

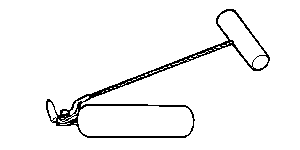

09861-31100 Sealant cut-out tool |
|
Cutting the sealant for the windshield glass (use with 09861-31200) |
|

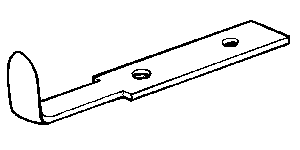

09861-31200 Sealant cutting blade |
|
Cutting the sealant for the windshield glass (use with 09861-31100) |
|

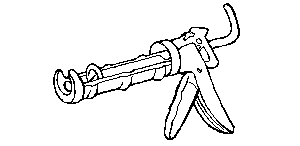

09861-31300 Sealant gun |
|
Application of the sealant to the windshield glass |
|

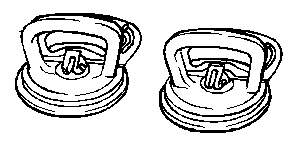

09681-31400 Glass holder |
|
Removal and installation of the windshield glass |
|

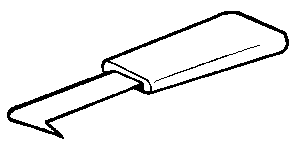

09681-31000 Windshield glass moulding remover |
|
Removal of the windshield glass moulding |
