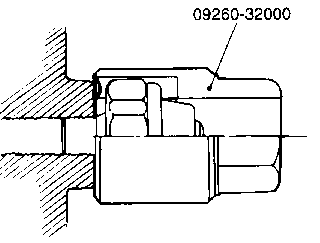

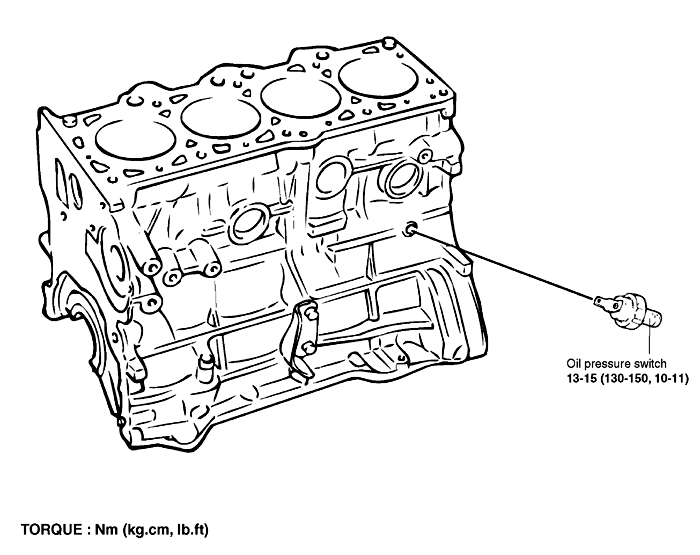

SERVICE MANUAL | |
Applies to: Hyundai Coupe/Tiburon 1998-2000 | |
GROUP | |
Engine Mechanical System | Engine Block |
MEASUREMENT SPECIFICATION | |

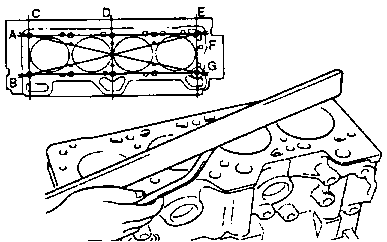

Block Top Surface Warp | 0.05 mm ( 0.0020 or less in ) |
MEASUREMENT SPECIFICATION | |
Block Top Surface Warp | 0.1 mm ( 0.0039 in ) |
SPECIFICATION | |

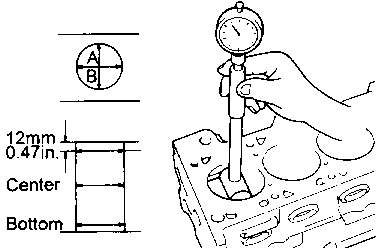

Cylinder I.D | 75.5 mm (2.972 in.) |
SPECIFICATION | |
Cylinder I.D taper | 0.02 mm (0.0008 in.) or less |
SPECIFICATION | |
Piston service size and mark (O.S.) | 0.25 mm (0.010 in.) |
SPECIFICATION | |
Piston service size and mark (O.S.) | 0.50 mm (0.020 in.) |
SPECIFICATION | |
Piston service size and mark (O.S.) | 0.75 mm (0.030 in.) |
SPECIFICATION | |
Piston service size and mark (O.S.) | 1.00 mm (0.039 in.) |
The standard measurement of the piston outside diameter is taken at a level 12 mm (0.47 in.) above the bottom of the piston skirt and across the thrust faces.
SPECIFICATION | |
Piston-to-cylinder wall clearance | 0.025-0.045 mm (0.0008-0.0016 in.) |
For further details, refer to the respective chapters.
