SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Fuel System MFI Control System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

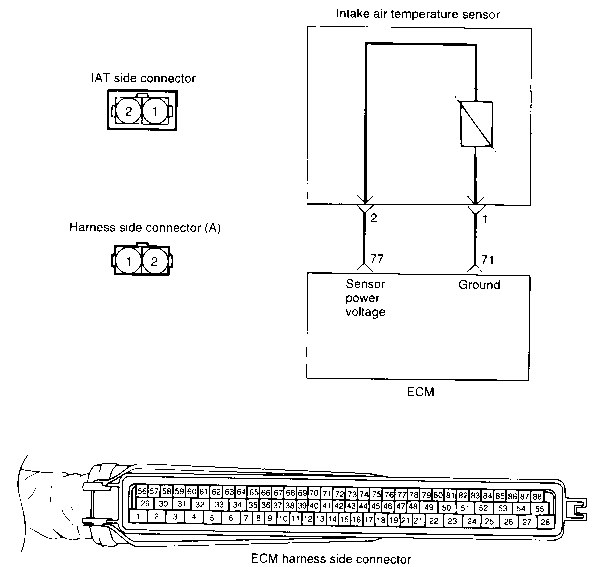

CIRCUIT DIAGRAMá
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

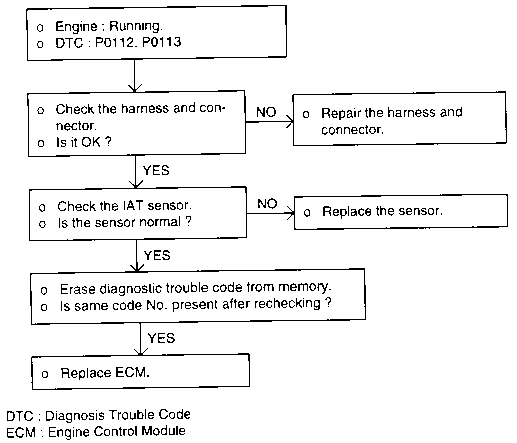

DTC - P0112, P0113 (IAT SENSOR)á
TROUBLESHOOTING HINTS

Input from intake air temperature sensor is below 0.1 V or above 4.8V when engine is in a full warm-up condition.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

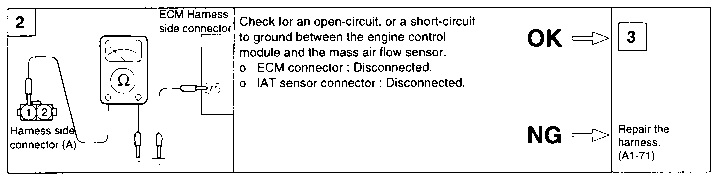

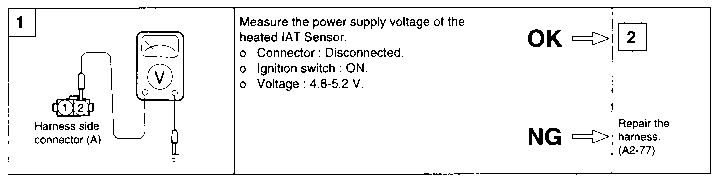

HARNESS INSPECTION PROCEDURESá
SENSOR INSPECTION
  1. Using the voltmeter, measure the sensor voltage.

  1. Measure the voltage between the IAT sensor terminal 1 and 2.

    |
    Temperature ░C(░F)
    Output voltage (V)
    IG. SW. ON
    0 (32)
    3.3-3.7 V
    20 (68)
    2.4-2.8 V
    40 (104)
    1.6-2.0 V
    80 (176)
    0.5-0.9 V
  1. If the voltage deviates from the standard value, replace the intake air temperature sensor assembly

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INTAKE AIR TEMPERATURE (IAT) SENSORá

The intake air temperature sensor (IAT Sensor), located on the air cleaner, is a resistor-based sensor for detecting the intake air temperature. According to the intake air temperature information from the sensor, the ECM provides necessary fuel injection amount control.
