SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Body (Interior & Exterior) Sunroof/Moonroof
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

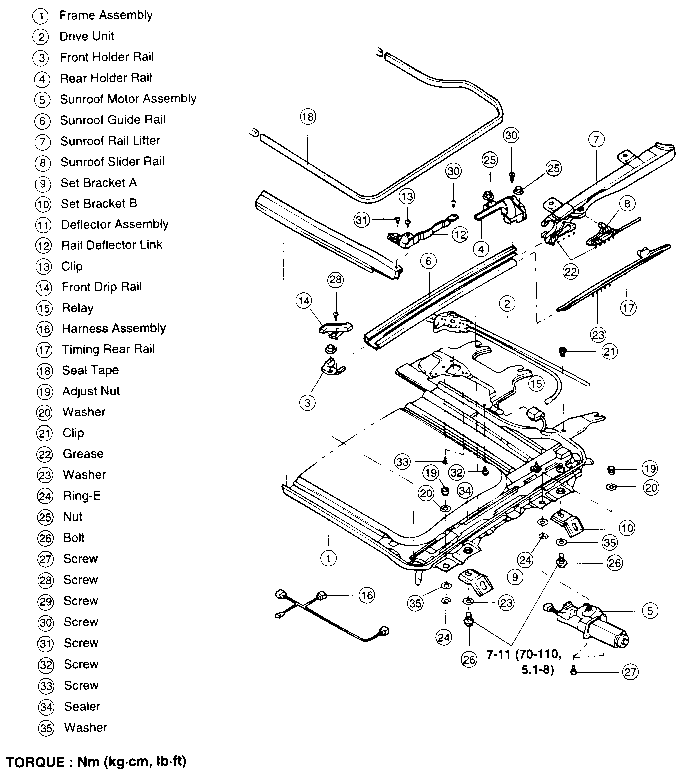

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL AND INSTALLATION
  1. To remove the sunroof first remove the following parts;

    1. Remove the covering shelf center trim and side trim.
    1. Remove the rear speaker grill and speaker.
    1. Remove the rear seat cushion.
    1. Remove the rear back.
    1. Remove the rear seat belt upper anchor mounting bolt.
    1. Remove the rear seat back lower side bracket.
    1. Remove the quarter inner trim.
    1. Remove the front seat belt upper anchor mounting bolt.
    1. Remove the center pillar upper trim.
    1. Remove the front pillar trim.
    1. Head lining assembly (Refer to page BD-39 interior trim and head lining).

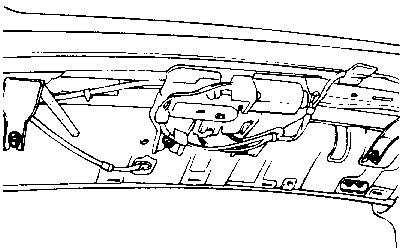

  1. Remove the drain hoses (4EA) from the sunroof assembly.

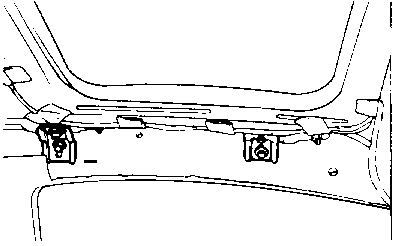

  1. Remove the mounting bracket and bolts (12EA) from the sunroof assembly.

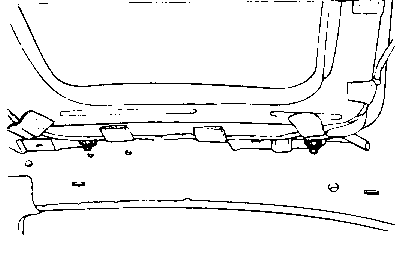

  1. Remove the nuts (4EA) from the sunroof assembly.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

ADJUSTMENT

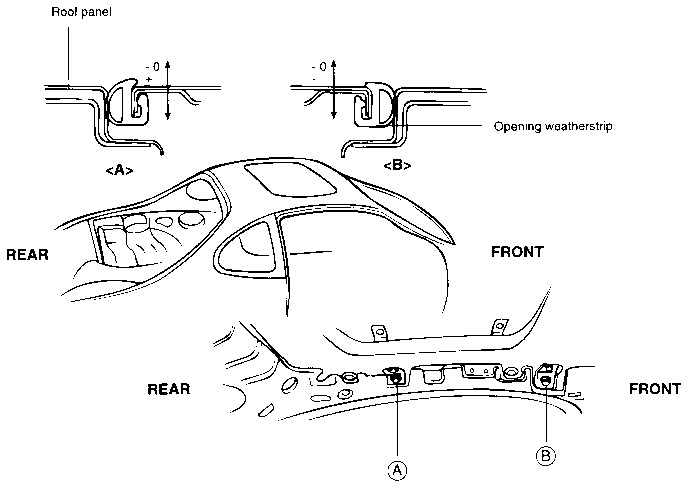

Set the gap by moving the sunroof adjuster nut A or B to clockwise or counterclockwise direction.

Adjustment procedure of sunroof adjuster nut.

  1. Tightening nut (clockwise direction): Sunroof lid panel moves down.

  1. Loosening nut (counterclockwise direction): Sunroof lid panel moves up.
