SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Body Electrical System Cigarette Lighter/Power Outlet
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL AND INSTALLATION

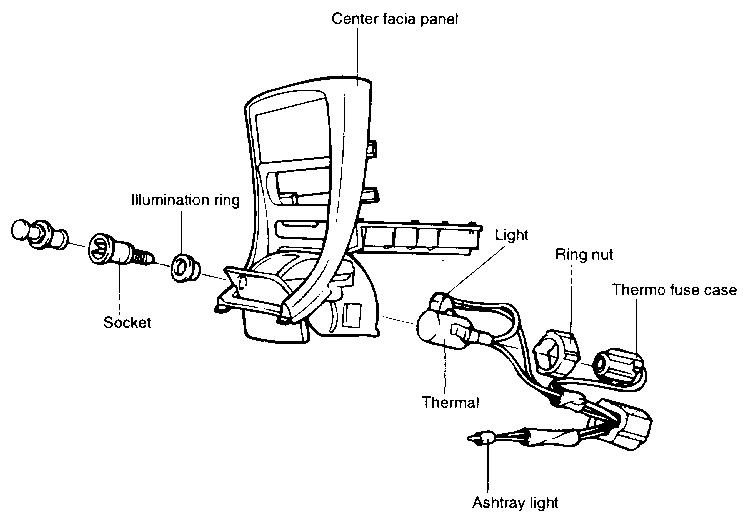

  1. Remove the facia panel. (Refer to BD section)

  1. Then disconnect the 3-p connector from the cigarette lighter.

  1. Disconnect the thermal fuse case from the socket end.

  1. Remove the ring nut and separate the cigarette lighter socket from the thermal protector.

    NOTE
    When installing the cigarette lighter, align each lug on the illumination ring and cigarette lighter socket with the groove of the hole, then position the bulb case on the thermal protector between the stoppers of the center facia panel.
    CAUTION
    When the auxiliary power is used to cigarette lighter socket, don't use anything with a load of more than 120W. It is recommended that only the lighter be inserted into the holder.
