SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Brake Systems Anti-lock Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

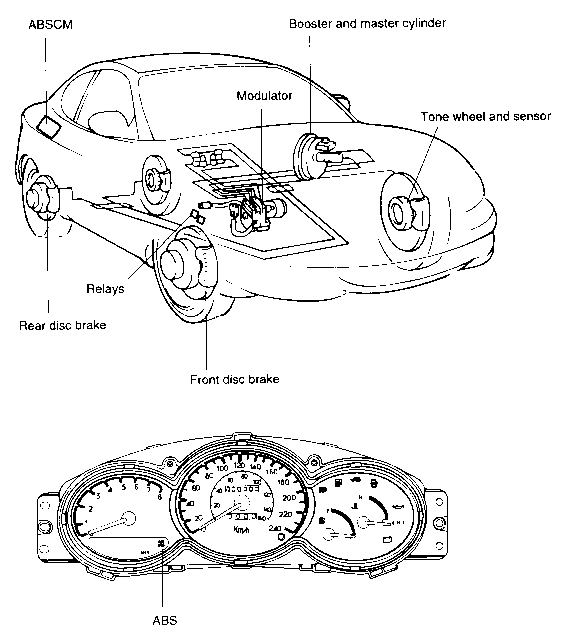

COMPONENTS

The Anti-Lock Brake System (ABS) controls the hydraulic brake pressure of all four wheels during sudden braking and braking on hazardous road surfaces, preventing the wheels from locking. The ABS provides the following benefits:

  1. It enables steering around obstacles with a greater degree of certainty, even during panic braking.

  1. It enables stopping during panic braking while allowing stability and steerability to a minimum, even on curves.

  1. In case a malfunction occurs, a diagnosis function and fail-safe system have been included for serviceability.

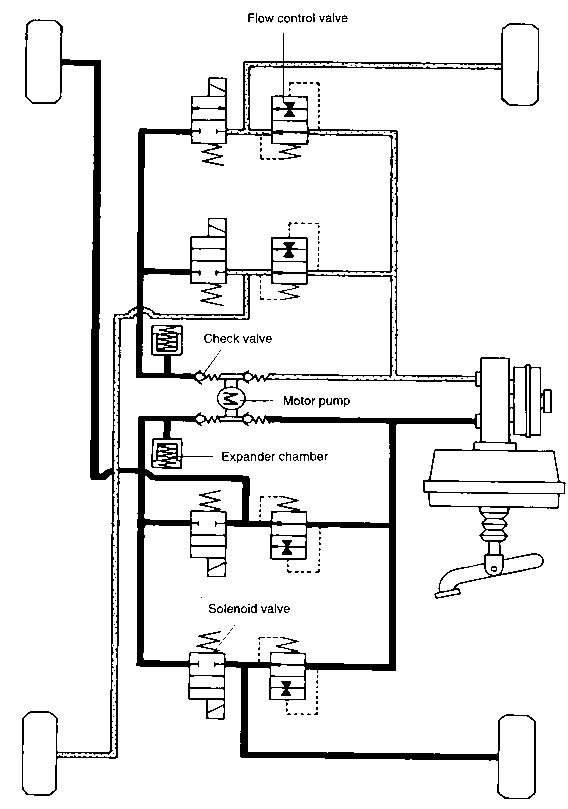

    HYDRAULIC SYSTEM DIAGRAM
