SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Brake Systems Anti-lock Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

ABS SRI (SERVICE REMINDER INDICATOR) CIRCUIT

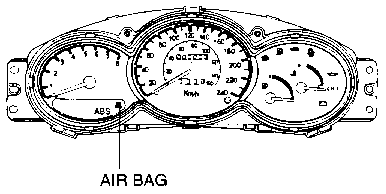

If trouble occurs, the ABSCM lights the ABS-SRI while at the same time terminating ABS operation. At this time, the ABSCM records a diagnostic code in memory.

If the ABSCM detects a fault in the Anti-Lock Brake System, the ABSCM turns the ABS SRI on and disables the ABS. At the same time a trouble code is stored in the ABSCM memory.

DTC
Code
DISPLAY ON
SCAN TOOL
Symptom
Possible Cause
44
ABS SRI CIRCUIT - SHORT GND
Service Reminder Indicator short to ground
  • Service Reminder Indicator
  • Box (Fail safe Relay)
  • Fuse
45
ABS SRI DIODE - OPEN
Service Reminder Indicator diode not OK

46
ABS SRI CIRCUIT - SHORT BATT
Service Reminder Indicator short to 12V

47
ABS SRI CIRCUIT - OPEN
Service Reminder Indicator open circuit

WIRING DIAGRAM
INSPECTION PROCEDURE

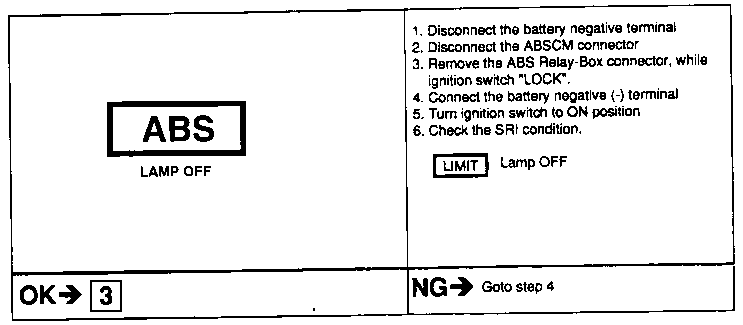

  1. Check the ABS Service Reminder Indicator circuit without Relay-Box

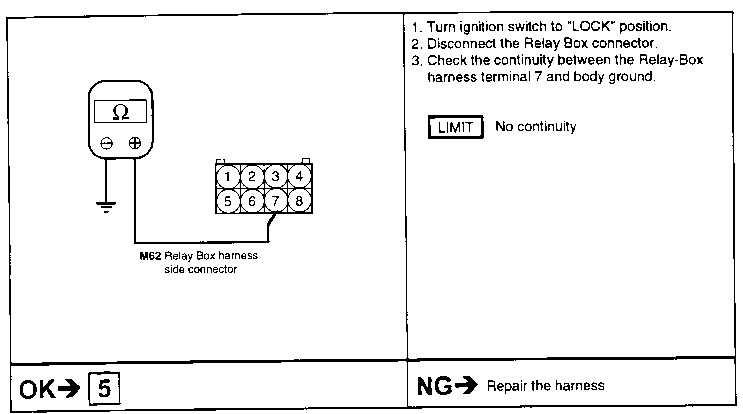

  1. Check the ABS Relay-Box harness

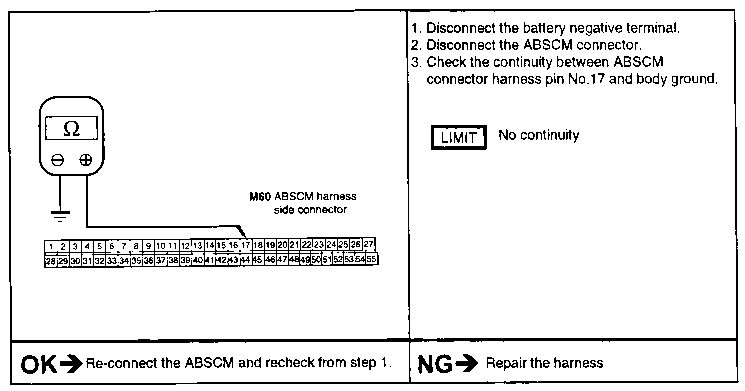

  1. Check the ABSCM connector harness

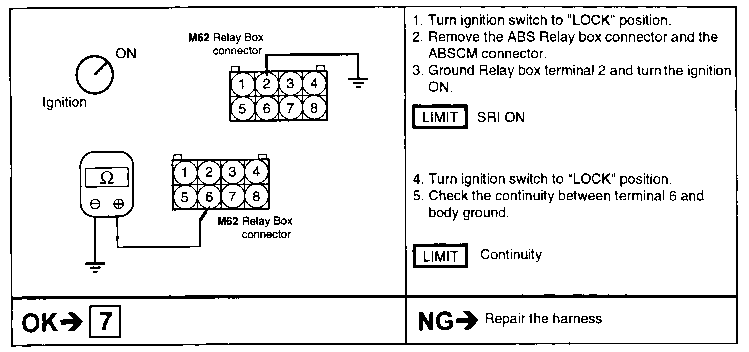

  1. Check the ABS SRI Circuit

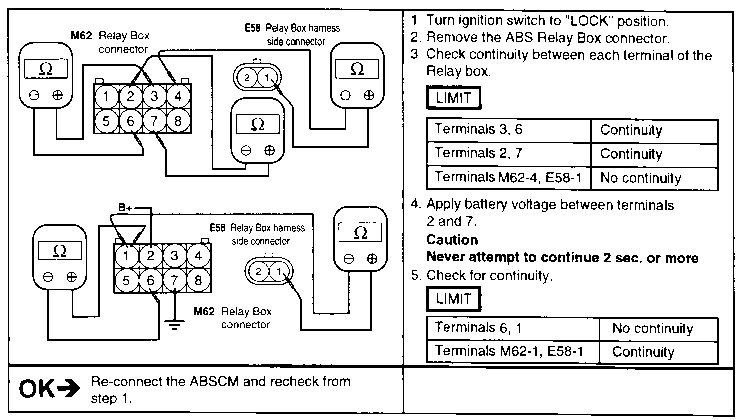

  1. Check the ABS-Relay Box (Fail safe relay)

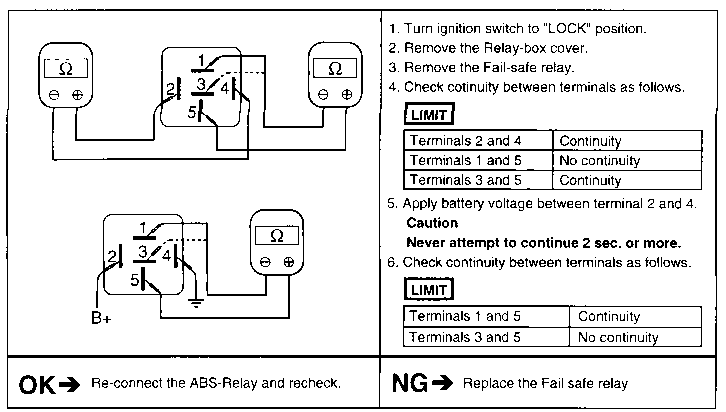

  1. Check the Fail safe relay
