SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Brake Systems Anti-lock Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DATA-LINK CIRCUIT

When a fault is detected the ABSCM, a code is stored in the ABSCM memory. The SCAN TOOL can be used to read the codes in the ABSCM memory.

WIRING DIAGRAM
INSPECTION PROCEDURE

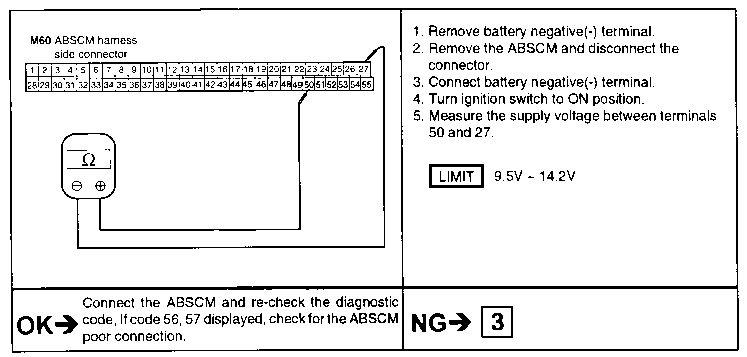

  1. Check for voltage supply of ABSCM.

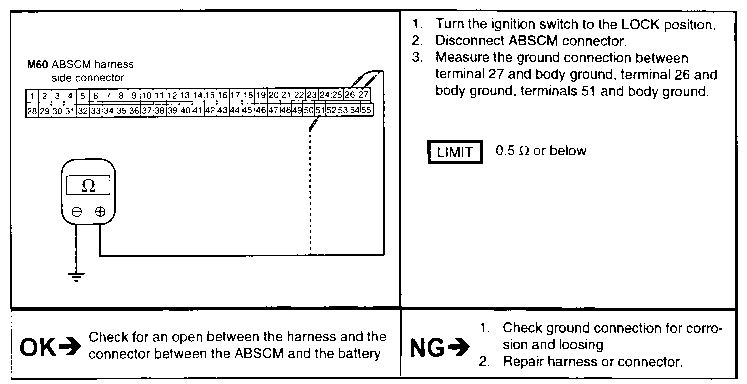

  1. Check continuity between the ABSCM connector GND and Body GND.
