SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Heating, Ventilation & Air Conditioning Blower Controls
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

RELAYS
AIR CONDITIONING RELAY AND CONDENSER FAN RELAY
  1. Remove the battery ground cable.

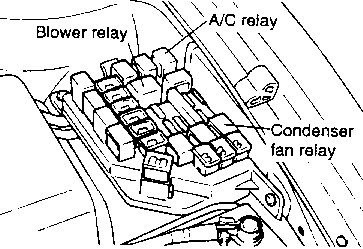

  1. Remove the cover of relay box located in engine compartment.

  1. Remove the relays from relay box.

  1. Check for continuity or voltage between the terminals.

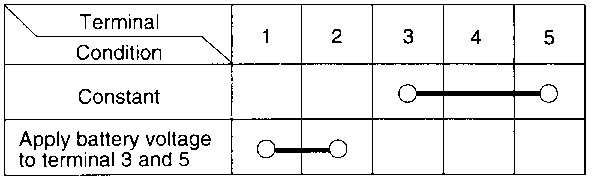

AIR CONDITIONING RELAY-check for continuity

If continuity is not as specified, replace the relay.

CONDENSER FAN RELAY-check for continuity

If continuity is not as specified, replace the relay.

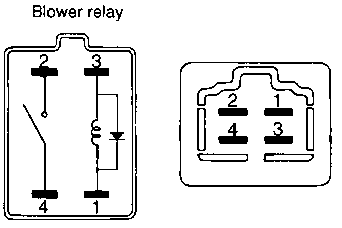

BLOWER FAN RELAY
  1. Remove the battery ground cable.

  1. Remove the rheostat switch with coin box from the crash pad.

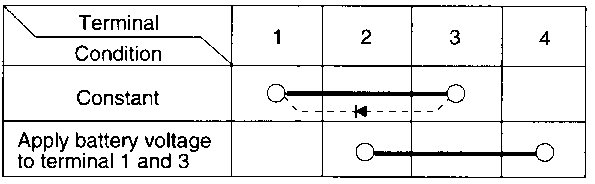

  1. Remove the relay and check for continuity between the terminal.

If continuity is not as specified, replace the relay.
