SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Restraints SRS Air Bag System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

WARNING/CAUTION LABELS

A number of caution labels relating to the SRS are found in the vehicle, as shown in the following illustration. Follow label instructions when servicing SRS.

If labels are dirty or damaged, replace them with new ones.

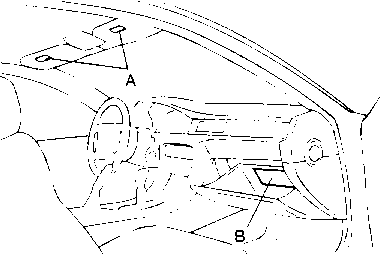

A. DAB + PAB
B. DAB + PAB
CAUTION
TO AVOID SERIOUS INJURY:
For maximum safety protection in all types of crashes, you must always wear your safety belt.
Do not install rearward-facing child seats in any front passenger seat position.
Do not sit or lean unnecessarily close to the airbag.
Do not place any objects over the airbag or between the airbag and yourself.
See the owner's manual for luther information and explanation.
Airbag system is normal if "SRS" lamp, in cluster flashes approximately 6 times and then goes out after ignition key is turned on.
However, if any of the following conditions occur the system must be serviced.
  1. "SRS" lamp does not light when key is turned on.
  2. "SRS" lamp flashes or stay lit continuously.
  3. The airbag has inflated.
THE AIRBAG SYSTEM must be inspected by authorized dealer Ten Years after vehicle manufacture date shown on certification label located on left front doorlatch post or door frame.
WARNING! failure to follow above instruction can result in injury to you or other occupants and children in the vehicle.
See "SRS" section in Owner's Manual for more information about airbag.

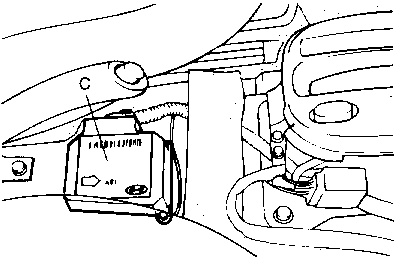

C. CAUTION: AIRBAG ESPS UNIT

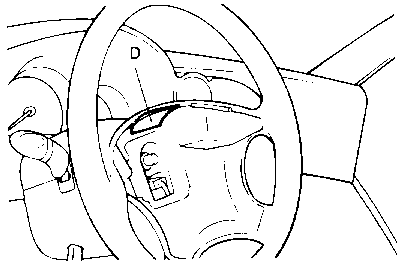

D. CAUTION: SRS
Detach connector before unmounting. Assemble strictly according to manual instructions.
Before replacing steering wheel, read service manual, center front wheels and align SRS clock spring neutral marks.
Failure to do so may render SRS system inoperative, risking serious driver injury.

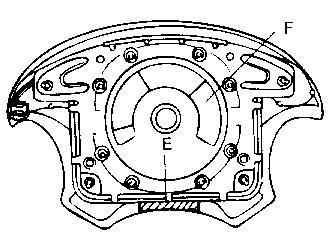

E. ATTENTION:
F.
Don't open, remove or transfer to another vehicle.Risk of malfunction and bodily injury!
This unit is to be installed and/or dismantled by trained personal only.
The gas generator should only be installed in vehicles equipped with the airbag system. The gas generator is to be installed and/or disassembled only by trained personal.

G. CAUTION: SRS Clock Spring
H. CAUTION: SRS
This is not a repairable part. Do not disassemble or tamper.
If defective, remove and replace entire unit per service manual instructions.
To re-center rotate clockwise until tight. Then rotate in opposite direction approximately 2 9/10 turns and align.
Failure to follow to instructions may render SRS system inoperative risking serious driver injury.
Before removal of steering gearbox, read service manual, center front wheels and remove ignition key.
Failure to do so may damage SRS clock spring and render SRS system inoperative, risking serious driver injury.

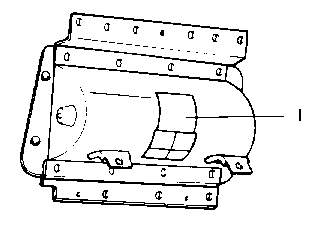

I. CAUTION
Don't open, remove or transfer to another vehicle. Risk of malfunction and bodily injury!
This unit is to be installed and/or dismantled by trained personnel only.
