SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Restraints SRS Air Bag System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DTC - B1354, B1355
DTC CODE
 DISPLAY ON SCAN TOOL
 CONDITION
B1354
 PAB - short to ground
  • Ignition switch "ON" or start release
  • Resistance between PAB module circuit harness and battery ground < 4 -20 KOHM
B1355
 PAB - short to battery
  • Ignition switch "ON" or start release
  • Resistance between PAB module circuit harness and battery (+12) < 6 -20 KOHM
CHECK ITEMS
  • Short circuit in PAB harness
  • PAB module malfunction
  • SRS control module malfunction
CHECK PROCEDURES

The SRS circuit consists of SRSCM, spiral cable, driver side airbag and passenger side airbag.

Before inspection,

  1. Disconnect battery negative (-) terminal cable and wait at least 30 seconds to prevent action of back up power.

  1. Remove the DAB and PAB connectors.

    CAUTION
    Keep the surface of airbag module facing upward.
CHECK INFLATOR CIRCUIT
  1. Disconnect SRSCM harness connector and DAB and PAB.

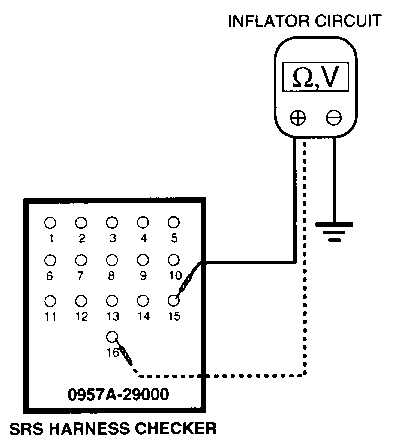

  1. Connect SRS harness checker to the SRSCM harness connector and inflator connectors.

  1. Check continuity or voltage between terminals 15, 16 of checker to body ground respectively.

    LIMIT

    B1354: Non-continuity

    B1355: 0V
