SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Brake Systems Conventional Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY
  1. Install the brake hoses without twisting them.

  1. The brake tubes should be installed away from sharp edges, weld beads or moving parts.

  1. Tighten the connections to the specified torque.

    TORQUE SPECIFICATION
    Flare nuts 13-17 Nm ( 130-170 kg·cm, 9-12 lb·ft )
    Brake hose to front caliper 25-30 Nm ( 250-300 kg·cm, 18-22 lb·ft )
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION
  1. Check the brake lines for cracks, crimps and corrosion.

  1. Check the brake hoses for cracks, damage and leakage.

  1. Check the brake line flare nuts for damage and leakage.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

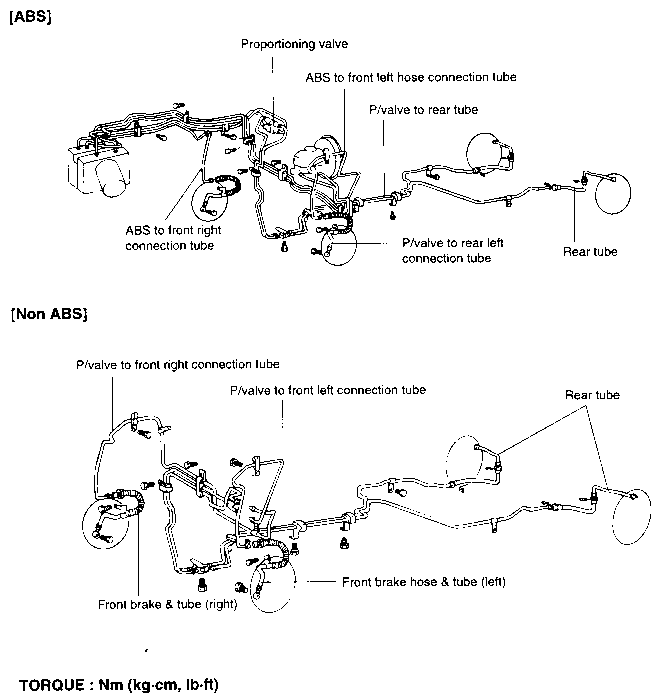

COMPONENTS
