SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Engine Electrical System Cruise Control System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

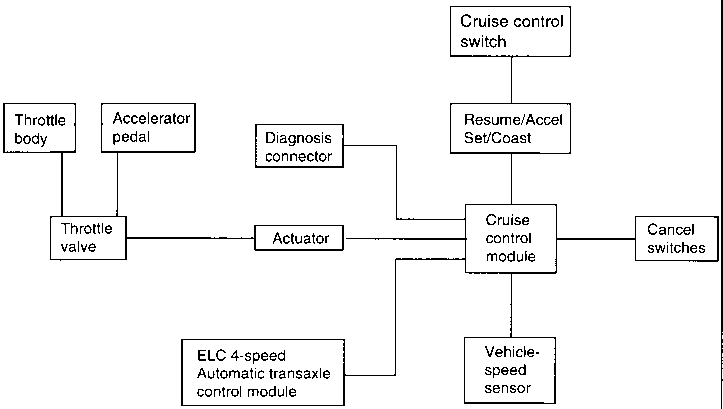

SYSTEM BLOCK DIAGRAM
COMPONENT PARTS AND FUNCTION OUTLINE
COMPONENT PART
FUNCTION
Vehicle-speed sensor
Converts vehicle speed to pulses.
Cruise control module (CCM)
Receives signals from sensor and control switch; CCM controls all automatic speed control function.
Actuator
Regulates the throttle valve to the set opening by signals from the CCM.
Control switch - CRUISE main switch
Switch for automatic speed control power supply.
Control switch - SET switch
Control switch - RESUME switch
Controls automatic speed control functions by SET (COAST) and RESUME (ACCEL).
Control switch - CRUISE main switch indicator
Illuminates when CRUISE main switch is ON (Built into cluster).
Cancel switch - Stop lamp switch/Clutch switch (M/T)
Sends cancel signals to the CCM.
Cancel switch - Transaxle range switch

ELC 4-speed automatic transaxle control module
Controls the overdrive ON and OFF, based on signals from the CCM for the CC.
Data link connector
By connecting the voltmeter or scan tool, control module diagnostic codes can be read.

*CCM: Cruise Control Module

*CC: Cruise Control
