SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Transaxle/Transmission Automatic Transaxle System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

TROUBLESHOOTING
DIAGNOSTIC TROUBLESHOOTING FLOW

Malfunctions of the auto transaxle can lead to other problems, such as those described below:

  1. Improper maintenance and/or adjustments.

  1. Electronic control malfunctions.

  1. Mechanical functions.

  1. Hydraulic control.

  1. Engine performance malfunctions, etc.

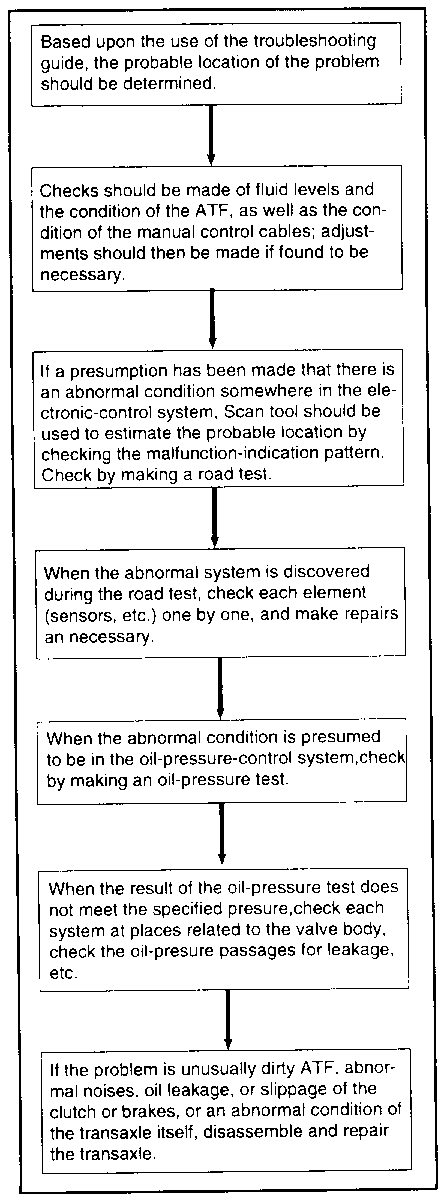

In order to properly troubleshoot the source of these malfunctions, it is essential to methodically question the owner concerning the problem. The driver should also be asked whether or not the problem has occured more than once. Tests should be conducted troubleshooting, as shown in figure.

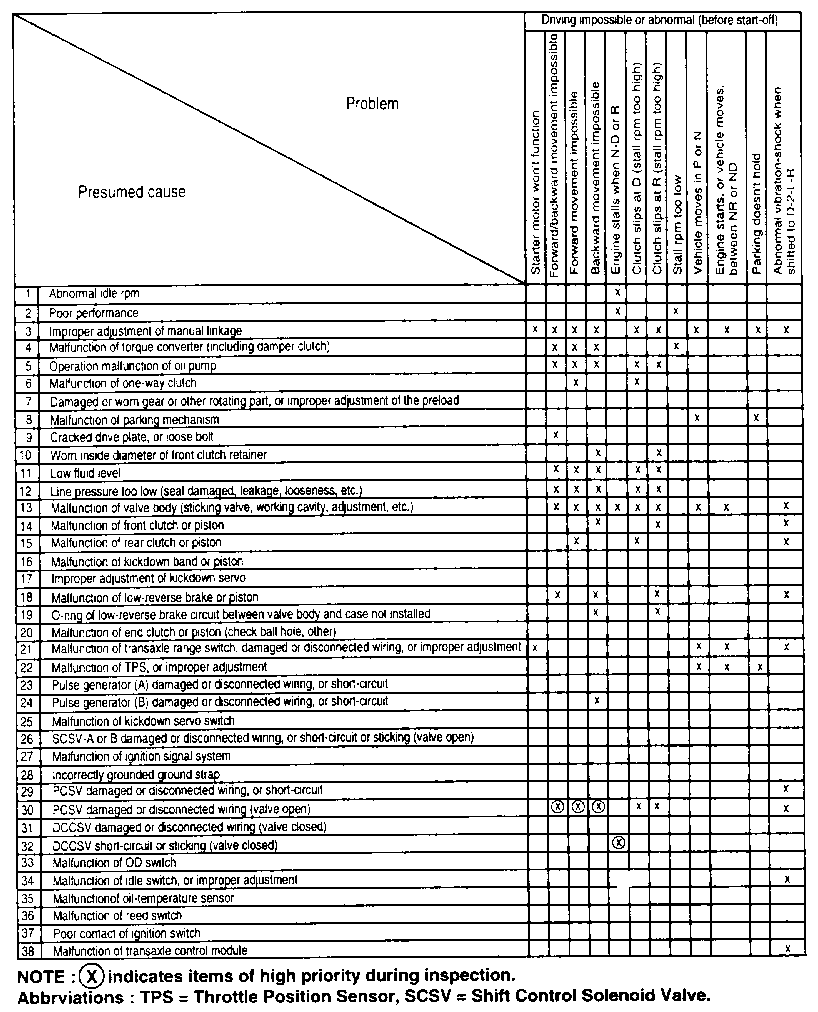

Troubleshooting Guide
