SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Transaxle/Transmission Automatic Transaxle System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY

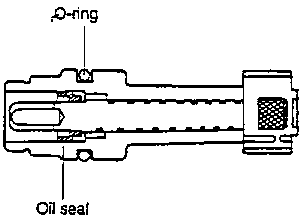

Install a new O-ring into the outer groove of the sleeve, and apply a coating of ATF to the outer circumference of the O-ring.

CAUTION
Insert carefully the speedometer driven gear into the transaxle housing not to disassemble the speedometer driven gear shaft.
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

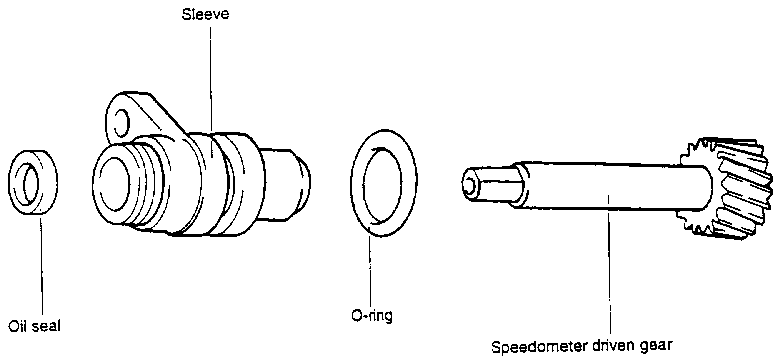

COMPONENTS
