DRIVE SHAFT OIL SEALS REPLACEMENT
  1. Disconnect the drive shaft from the transaxle.

    (Refer to DRIVE SHAFT & FRONT AXLE GROUP.)

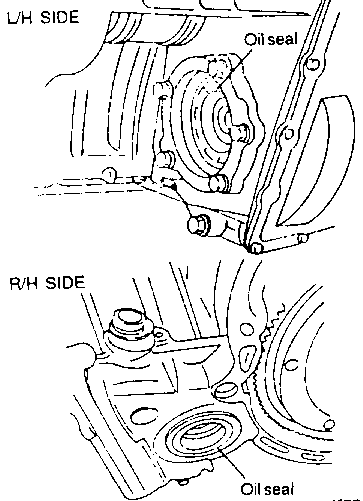

  1. Using a flat-tip (-) screwdriver, remove the oil seal.

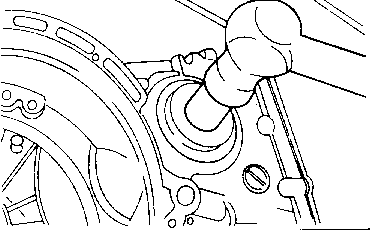

  1. Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.

  1. Apply a coating of the automatic transaxle fluid to the lip of the oil seal.
