SPEEDOMETER CABLE REPLACEMENT
  1. Correctly insert the adapter into the instrument panel, and fasten the new speedometer cable.

    CAUTION
    The cable arrangement should be so that the radius of the cable bends is 150 mm (5.9 in.) or more.

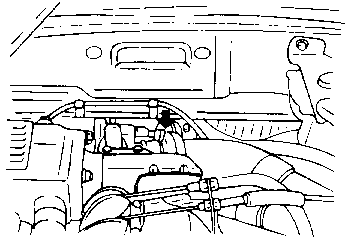

  1. Install the grommet as shown in the illustration so that the cable attachment part and the projection part are horizontal.

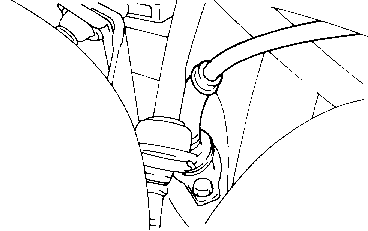

  1. At the transaxle end of the speedometer cable, the key joint should be inserted into the transaxle, and the nut should be securely tightened.

    CAUTION
    If the cable is not correctly and securely connected, it may cause an incorrect reading on the speedometer, or abnormal noise. Be sure to connect it correctly.
