SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Transaxle/Transmission Automatic Transaxle System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

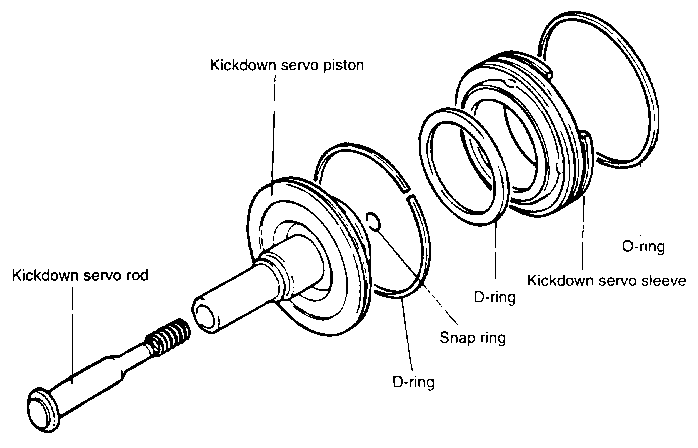

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY
  1. Install the rod and nut to the kickdown servo piston.

  1. Install two new D-rings (one large and one small) around the circumference of the piston, and then apply a coating of ATF to the D-rings.

  1. Install the kickdown servo piston in the sleeve.

  1. Install a new O-ring around the circumference of the sleeve, and apply a coating of ATF to the O-ring
