SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Transaxle/Transmission Automatic Transaxle System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY

Upper Valve Body

Lower Valve Body

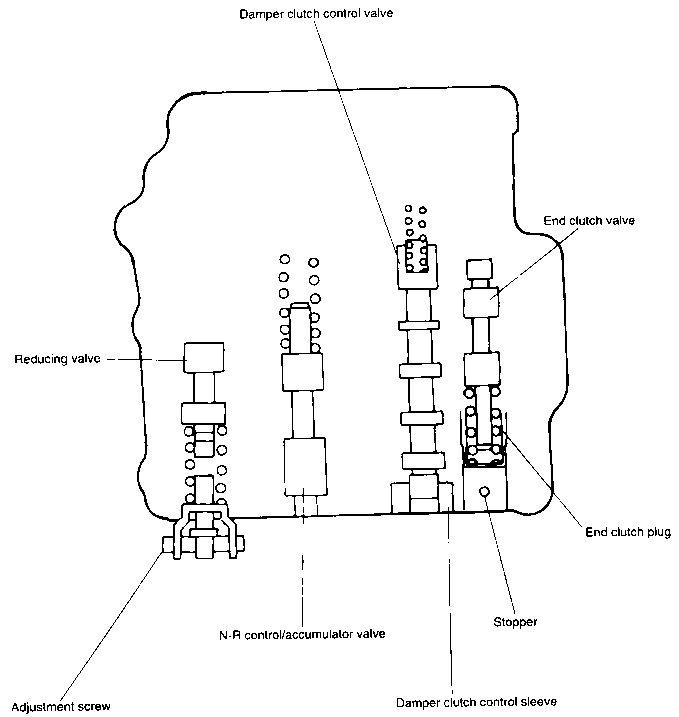

  1. Install in the lower valve body, the damper clutch control spring, damper clutch control valve, and the damper clutch control sleeve.

  1. Install the N-R control/accumulator spring and the N-R control/accumulator valve.

  1. Install the reducing valve.

  1. Install the reducing spring, adjustment screw, and end cover. Tighten the bolts to the specified torque.

    TORQUE SPECIFICATION
    Reducing spring 4-6 Nm ( 40-60 kg·cm, 3-4 lb·ft )
  1. Install the end clutch valve, end clutch spring, and end clutch plug.

  1. Install the stopper and secure it with the pin.

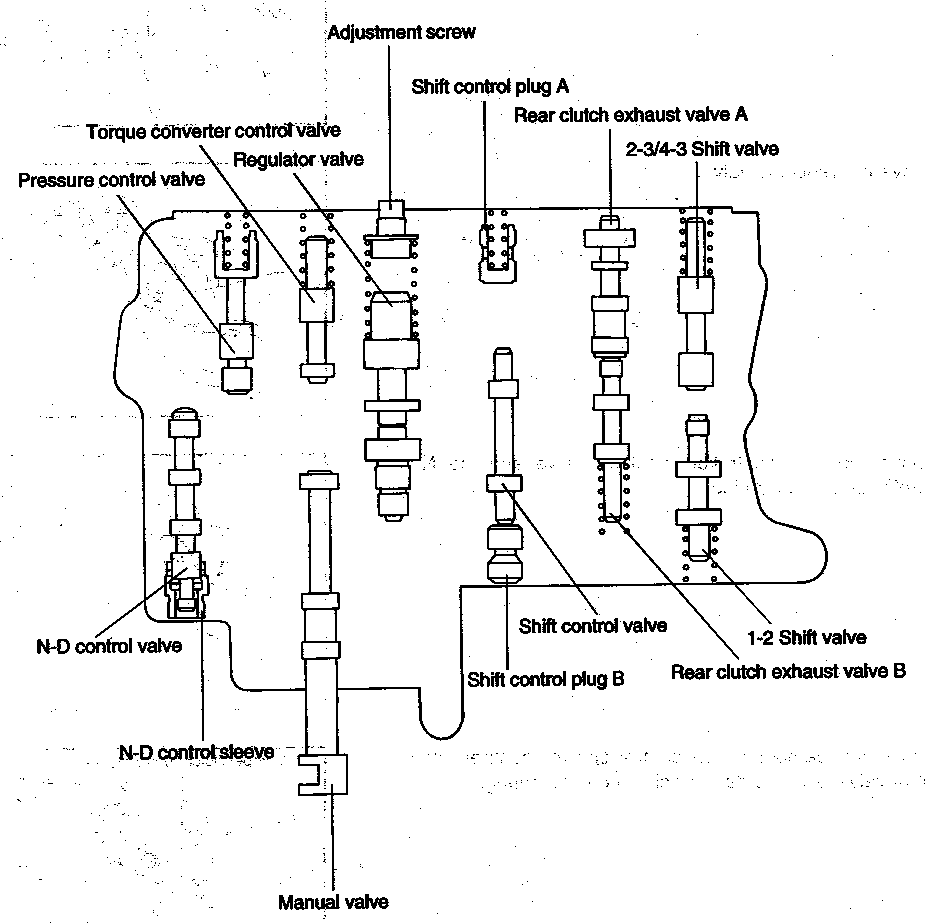

  1. Install the shift-control valve to the upper valve body.

  1. Install the shift-control plug B.

  1. Install the 1-2 shift valve and the 1-2 shift spring.

  1. Install the rear end cover.

  1. Install the N-D control valve and the N-D control sleeve.

  1. Install the 2-3/4-3 shift valve and the 2-3/4-3 shift spring.

  1. Install the rear clutch exhaust spring and rear clutch exhaust valves A and B.

  1. Install shift-control plug A and shift control spring.

  1. Install the regulator valve and regulator spring.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY (continued)
  1. Install the torque converter control valve and torque converter control spring.

  1. Install the pressure control valve and pressure control spring.

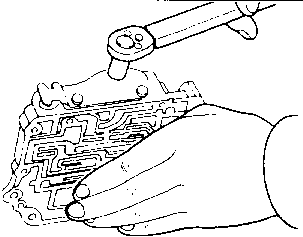

  1. Install the adjustment screw and front end cover. Tighten the bolts to the specified torque.

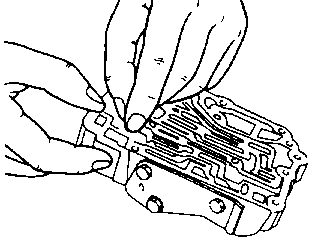

  1. Install in the upper valve body, the three steel balls, the teflon ball, two stopper plate and N-D plate.

  1. Install the upper separating plate.

  1. Install the block.

  1. Install the special tool (09456-21000). Then, securing the upper separating plate and the intermediate plate with the eight installation bolts, remove the special tool.

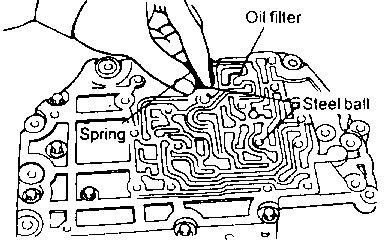

  1. Install to the intermediate plate, the oil filter, the two steel balls, and the spring.

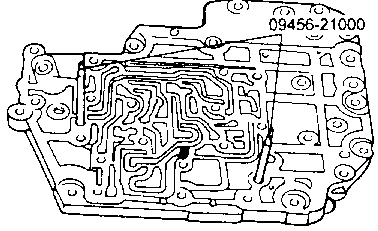

  1. Install the special tool (09456-21000) to the intermediate plate.

  1. Install the separating plate.

  1. After securing the lower valve body using the 15 installation bolts, remove the special tool.

  1. Install the valve stopper plate and clamp.

  1. Install the manual valve.

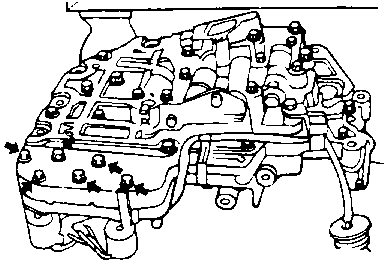

  1. Secure the six solenoid installation bolts.
