SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Body Electrical System Fuse/Relay Box Details
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

FUSIBLE LINK

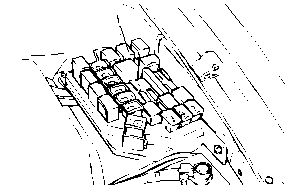

ENGINE COMPARTMENT RELAY BOX
SPECIFICATIONS
|
 Circuit
 Rated Capa-
city
 Housing Color
 |
 Circuit
 Rated Capa-
city
 Housing Color
A
 Generator
 100A
 Cobalt Blue
 G
 Radiator
 30A
 Pink
B
 ECM
 20A
 Blue
 H
 ABS
 30A
 Pink
C
 Power window
 30A
 Pink
 I
 ABS
 20A
 Blue
D
 Condenser
 20A
 Blue
 J
 Ignition
 30A
 Pink
E
 Battery
 50A
 Red
 K
 Blower
 30A
 Pink
F
 Lamps
 30A
 Pink
 |
 |
 |
 |
INSPECTION
  1. Check for a burnt fusible link with an ohmeter.

  1. If a fusible link burns out, there is a short or some other problem in the circuit. Carefully determine the cause and correct it before replacing the fusible link.

    CAUTION
    The fusible link will burn out within 15 seconds if a higher than specified current flows through the circuit.
