SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Body Electrical System A/T & Key Lock Control System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

SHIFT LOCK SYSTEM
SYSTEM CHECK

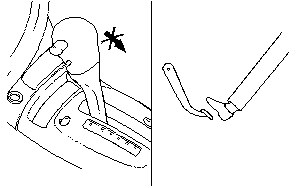

  1. Check that under the following conditions, the shift lever cannot be moved from the "P" position to any other position.

    IGNITION KEY POSITION: "ON"

    BRAKE PEDAL: NOT DEPRESSED

    BUTTON: PRESSED

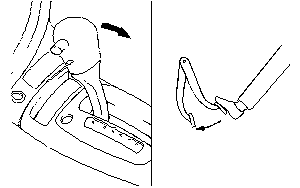

  1. Check that under the following conditions, the shift lever can be moved from the "P" position to other position.

    IGNITION KEY POSITION: "ON"

    BRAKE PEDAL: DEPRESSED

    BUTTON: PRESSED
