ELECTRICAL TROUBLESHOOTING MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-1999
GROUP
Brake Systems Anti-lock Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

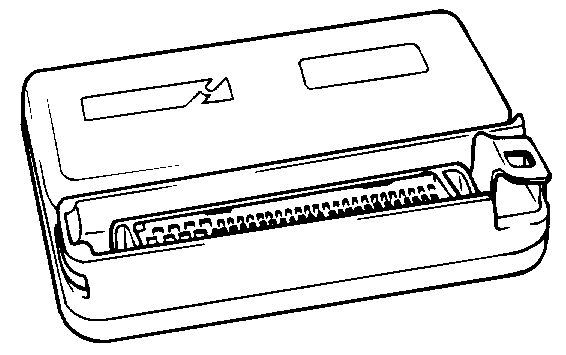

ANTI-LOCK BRAKING SYSTEM CONTROL MODULE
ABSCM CONNECTOR (M60, ABSCM HARNESS SIDE CONNECTOR)
PIN NO
PLUG ASSIGNMENT
I/O
PIN NO
PLUG ASSIGNMENT
I/O
1
SENSOR RIGHT FRONT
I
32
SENSOR LEFT FRONT
I
3
SENSOR LEFT REAR GROUND
I
34
SENSOR LEFT FRONT GND
I
13
MIL FLASH CODE
O
36
SENSOR RIGHT REAR
I
15
BRAKE LIGHT SWITCH
I
37
SENSOR RIGHT REAR GND
I
17
ABS SRI
O
42
MOTOR MONITOR LINE
I
19
MOTOR RELAY DRIVE
O
43
F/SF RELAY MONITOR
I
25
SOLENOID REAR RIGHT
O
44
DLC INPUT/OUTPUT
I/O
26
GROUND FOR SOLENOIDS
I
50
IGNITION SIGNAL
I
27
GROUND FOR SOLENOIDS
I
51
CONTROLLER GROUND
I
28
F/SF RELAY DRIVE
O
52
SOLENOID RIGHT FRONT
O
29
SENSOR LEFT REAR
I
53
SOLENOID LEFT REAR
O
31
SENSOR RIGHT FRONT GND
I
54
SOLENOID LEFT FRONT
O

I: INPUT

MIL: Malfunction Indicator Light

O: OUTPUT

SRI: Service Reminder Indicator

F/SF: Fail safe

DLC: Data Link Connector

Return to Main Menu(s):      Mechanical Manual      Electrical Manual


REMOVAL

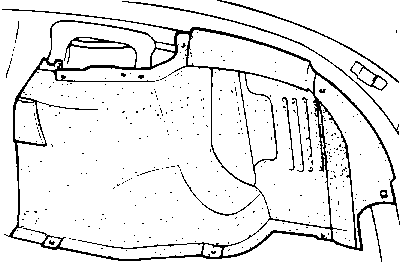

  1. Remove the luggage side trim.

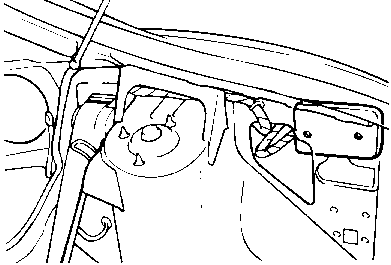

  1. Remove the ABSCM and disconnect connector.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual


ABSCM (ABS CONTROL MODULE)
