SERVICE MANUAL | |
Applies to: Hyundai Coupe/Tiburon 1998-2000 | |
GROUP | |

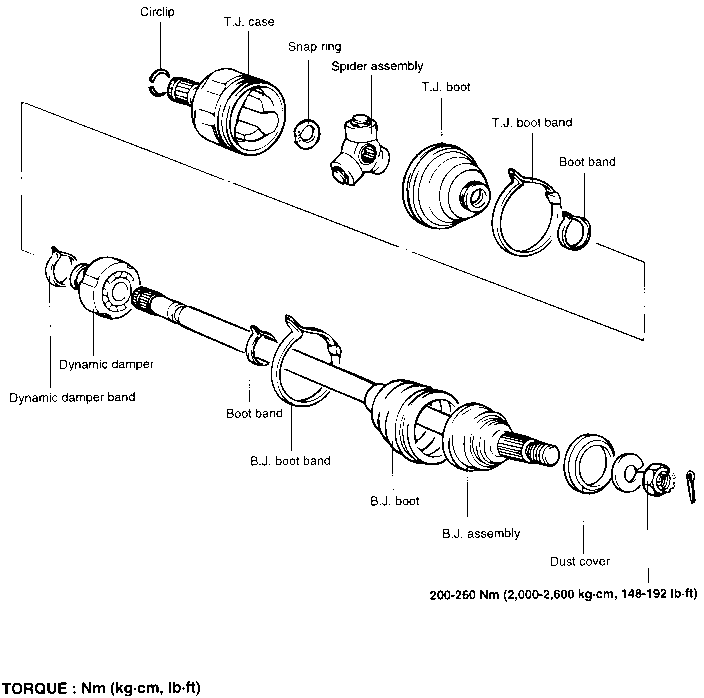

Drive Shaft & Axle | Drive Shaft |
B.J. Boot grease |
CENTOPLEX 278M/136K |
T.J. Boot grease (2.0 A/T) |
ONE-LUBER MK |
T.J. Boot grease (1.8 A/T) |
KLK TJ41-182 (MSS511-50, KOREA KLUBER) |
Total |
120 ± 6 (4.3 ± 0.2) |
In the joint |
75 ± 3 (2.7 ± 0.1) |
In the boot |
45 ± 3 (1.6 ± 0.1) |
Total |
145 ± 6 (5.1 ± 0.2) |
In the joint |
100 ± 3 (3.5 ± 0.1) |
In the boot |
45 ± 3 (1.6 ± 0.1) |
| |
Nm (kg.cm, Ib.ft) |
Drive shaft nut |
200-260 (2000-2600, 148-192) |
Knuckle to strut assembly |
110-130 (1100-1300, 81-95) |
Lower arm ball joint to knuckle |
60-72 (600-720, 44-53) |
Kit name
|
Illustration
|
Contents
|

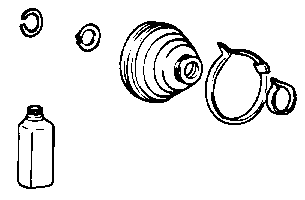

T.J. boot kit |
|
|

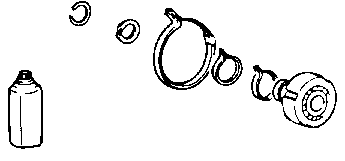

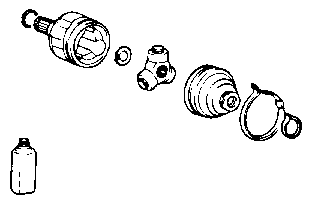

T.J. joint kit |
|
|

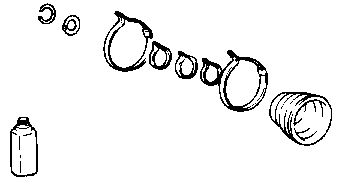

B.J. boot kit |
|
|

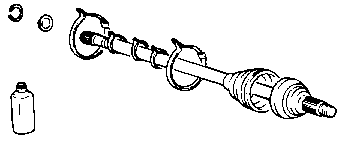

B.J. joint and shaft kit |
|
|

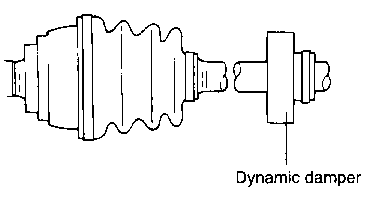

Damper kit |
|
|
