SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Emissions Control System Crankcase Emission Control System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL

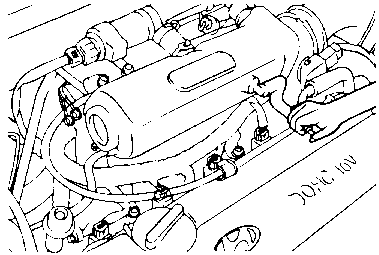

  1. Disconnect the ventilation hose from the positive crankcase ventilation (PCV) valve. Remove the PCV valve from the rocker cover and reconnect it to the ventilation hose.

  1. Run the engine at idle and put a finger on the open end of the PCV valve and make sure that intake manifold vacuum is felt.

    NOTE
    The plunger inside the PCV valve will move back and forth.
  1. If vacuum is not felt, clean the PCV valve and ventilation hose in cleaning solvent or replace if necessary.

INSPECTION
  1. Remove the positive crankcase ventilation valve.

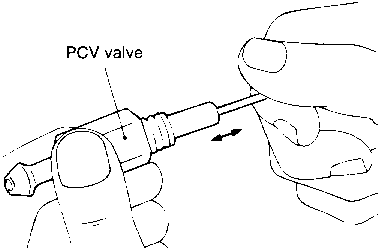

  1. Insert a thin stick into the positive crankcase ventilation valve from the threaded side to check that the plunger moves.

  1. If the plunger does not move, the positive crankcase ventilation valve is clogged. Clean it or replace.

INSTALLATION

Install the positive crankcase ventilation valve and tighten to specified torque.

TORQUE SPECIFICATION
PCV valve 8-12 Nm ( 80-120 kg·cm, 5.8-8.7 lb·ft )
