SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Engine Electrical System Ignition System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL and INSPECTION
  1. Remove the battery ground cable.

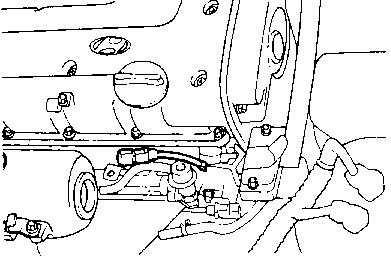

  1. Remove the camshaft position sensor mounting bolt.

  1. Pull out the camshaft position sensor from cylinder head.

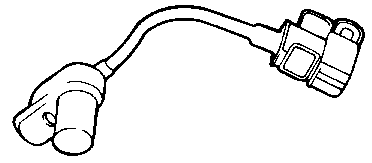

  1. Check the camshaft position sensor. Refer to FL-CMP sensor.

  1. After check, securely install the CMP sensor.

    TORQUE SPECIFICATION
    CMP sensor 8 Nm ( 80 kg·cm, 6 lb·ft )
