SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Engine Electrical System Cruise Control System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

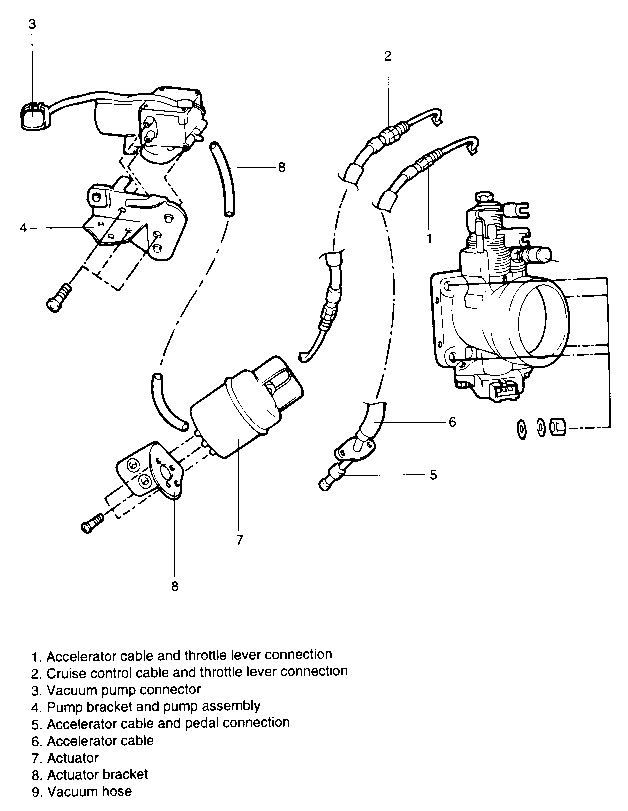

SYSTEM COMPONENTS
  1. Remove the battery negative terminal.

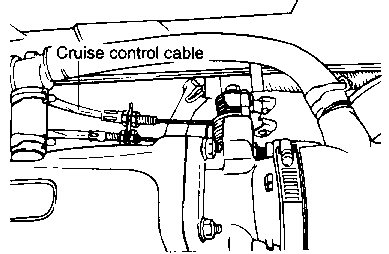

  1. Disconnect the cruise control cable and throttle lever connection while turning throttle lever to the full open position.

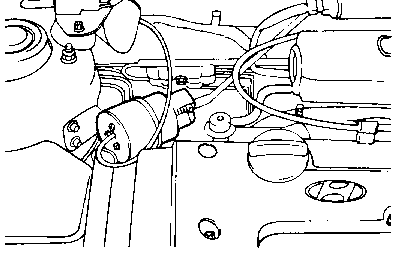

  1. Disconnect the vacuum pump connector and remove the vacuum pump assembly.

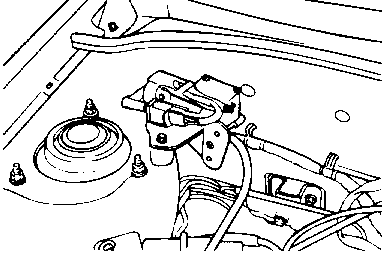

  1. Remove the actuator bracket and disconnect the vacuum hose.

  1. Installation is the reverse order of removal.
