SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Fuel System Fuel Delivery System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSTALLATION

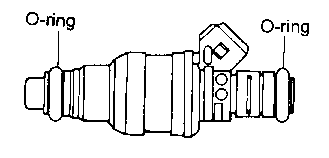

  1. Install a new grommet and O-ring to the injector.

  1. Apply a coating of solvent, spindle oil gasoline to the O-ring of the injector.

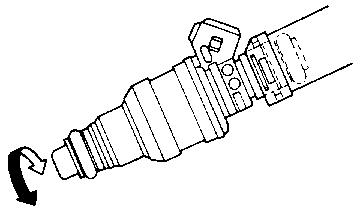

  1. While twisting the injector left and right, install it on to the delivery pipe.

  1. Be sure the injector turns smoothly.

    NOTE
    If it does not turn smoothly, the O-ring may be jammed; remove the injector, re-insert it into the delivery pipe and re-check.
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

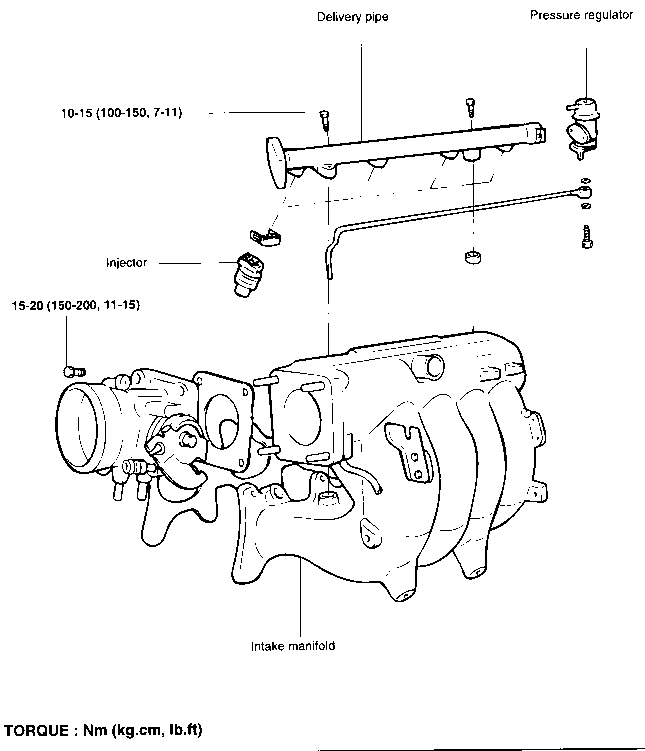

COMPONENTS
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL
  1. Release residual pressure from the fuel line to prevent fuel from spilling.

    CAUTION
    Cover the hose connection with a rag to prevent splashing of fuel that could be caused by residual pressure in the fuel line.

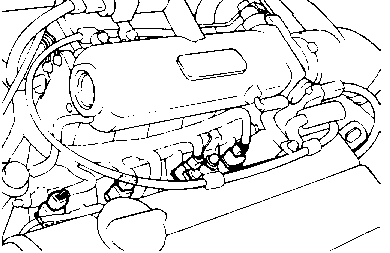

  1. Remove the delivery pipe with the fuel injector and pressure regulator.

    CAUTION
    1. Be careful not to drop any injectors when removing the delivery pipe.
    2. Be aware that fuel may flow out when removing the injector.
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION

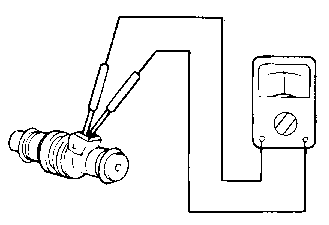

  1. Measure the resistance of the injectors between the terminals using an ohmmeter.

    RESISTANCE SPECIFICATION
    Resistance [at20°C(68°F)] 15.9±.0.35 O
  1. If the resistance is not within specifications, replace the injector.
