SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Fuel System Fuel Delivery System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL
  1. Remove the upper bolt and the high pressure fuel hose.

    CAUTION
    1. Be sure to reduce the fuel pressure before disconnecting the fuel line and hose, otherwise fuel will spill out.
    2. Cover the hose connection with a shop towel to prevent splashing of fuel that could be caused by residual pressure in the fuel line.
  1. Remove the lower bolt.

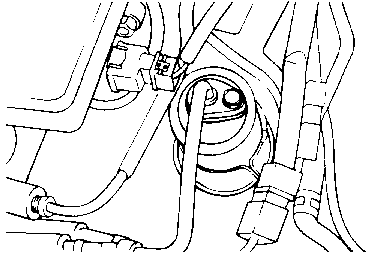

  1. Remove the fuel filter mounting bolts, then remove the fuel filter from the bracket.

  1. Remove the fuel return hose and line.

  1. Remove the fuel vapor hose and line.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION
  1. Check the hoses and pipes for cracking, bending, deformation or restrictions.

  1. Check the canister for restrictions.

  1. Check the fuel filter for restrictions and damage. If a problem is found, repair or replace parts as necessary

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSTALLATION
  1. Install the fuel vapor hose and return hoses.

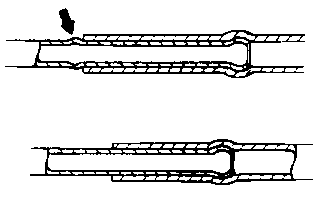

    • If the fuel line has a stepped section, connect the fuel hose to the line securely, as shown in the illustration.
    • If the fuel line does not have a stepped section, connect the fuel hose to the line securely.
  1. Install the fuel filter, and tighten the fuel filter bracket.

  1. Insert the main line on the filter and tighten the bolts.

  1. Install the clips and make sure that the do not interfere with other components.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

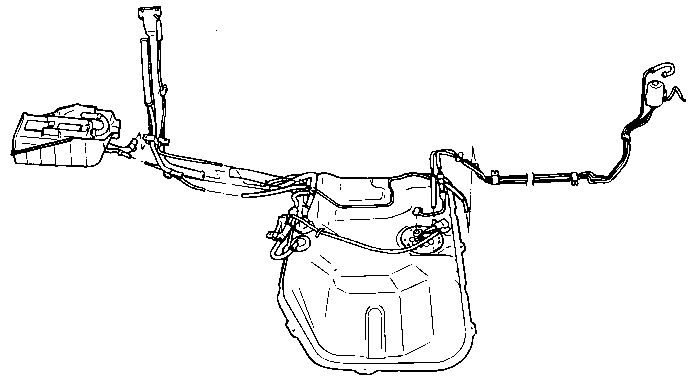

COMPONENTS
