SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Restraints SRS Air Bag System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REASSEMBLY
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL
CAUTION
  1. Never attempt to disassemble or repair the air bag module or clock spring.
  2. Do not drop the air bag module or allow contact with water, grease or oil. Replace it if a dent, crack, deformation or rust are detected.
  3. The air bag module should be stored on a flat surface and placed so that the pad surface is facing upward. Do not place anything on top of it.
  4. Do not expose the air bag module to temperature over 93C (200F)
  5. An undeployed air bag module should only be disposed in accordance with the procedures
  6. Never attempt to measure the circuit resistance of the air bag module (squib) even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result in serious personal injury.
  7. Whenever the PAB is deployed, it should be replaced with a new one assembled with an extension wire. Because the squib is melt down if the PAB is deployed making the extension wire useless.

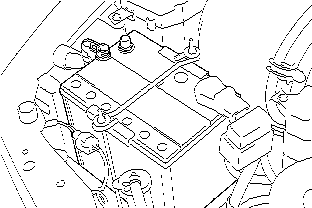

  1. Disconnect the battery negative (-) terminal cable.

    CAUTION
    Wait at least 30 seconds.
  1. Remove the glove box.

  1. Disconnect the PAB module connector.

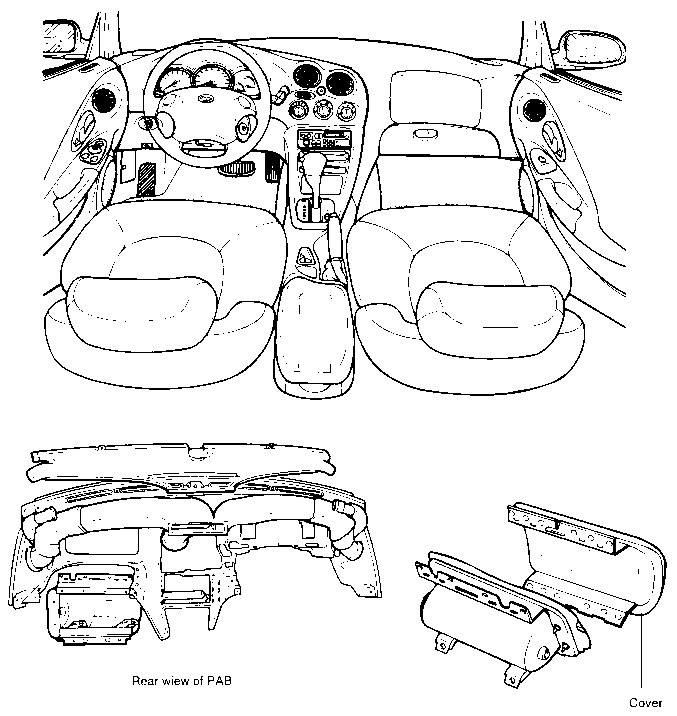

  1. Remove the crash pad assy and then the PAB module.
