ELECTRICAL TROUBLESHOOTING MANUAL
  Applies to: Hyundai Coupe/Tiburon 1999
GROUP
Body Electrical System Fuse/Relay Box Details
Return to Main Menu(s):      Mechanical Manual      Electrical Manual


DASH FUSE BOX DETAILS SYSTEM SCHEMATICS

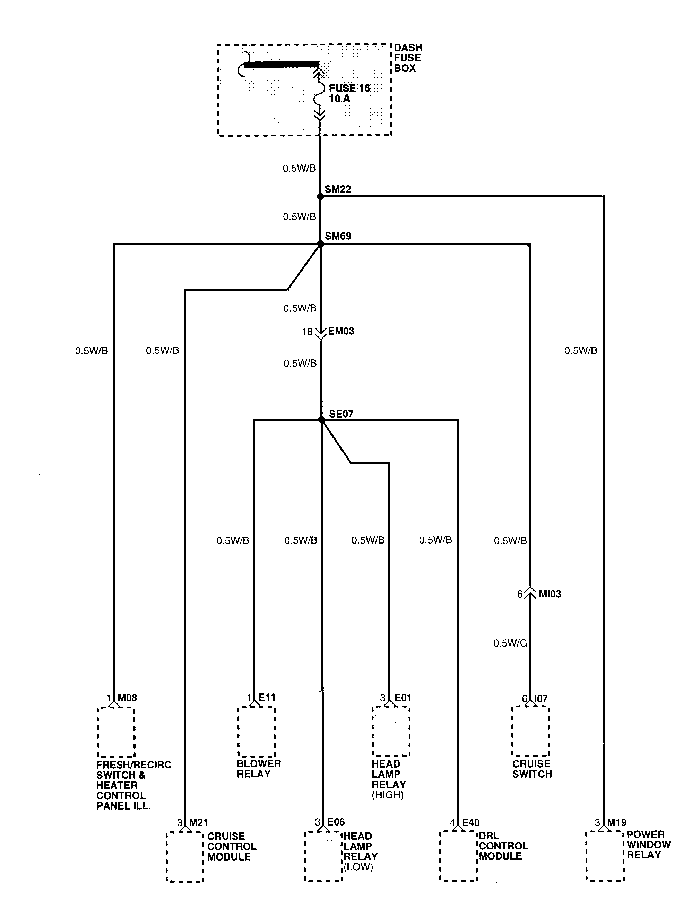

DASH FUSE BOX DETAILS SYSTEM (1)

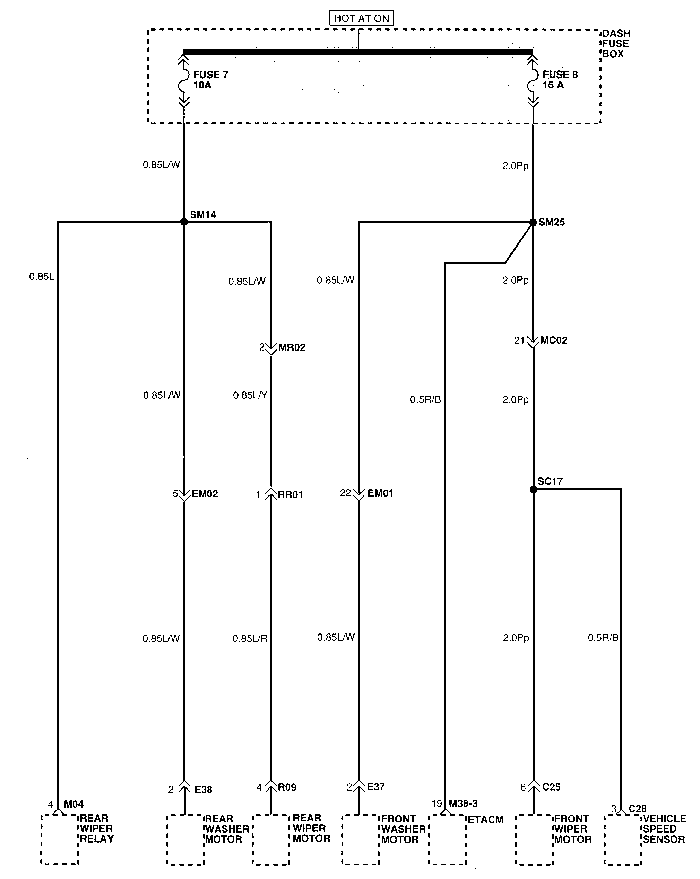

DASH FUSE BOX DETAILS SYSTEM (2)

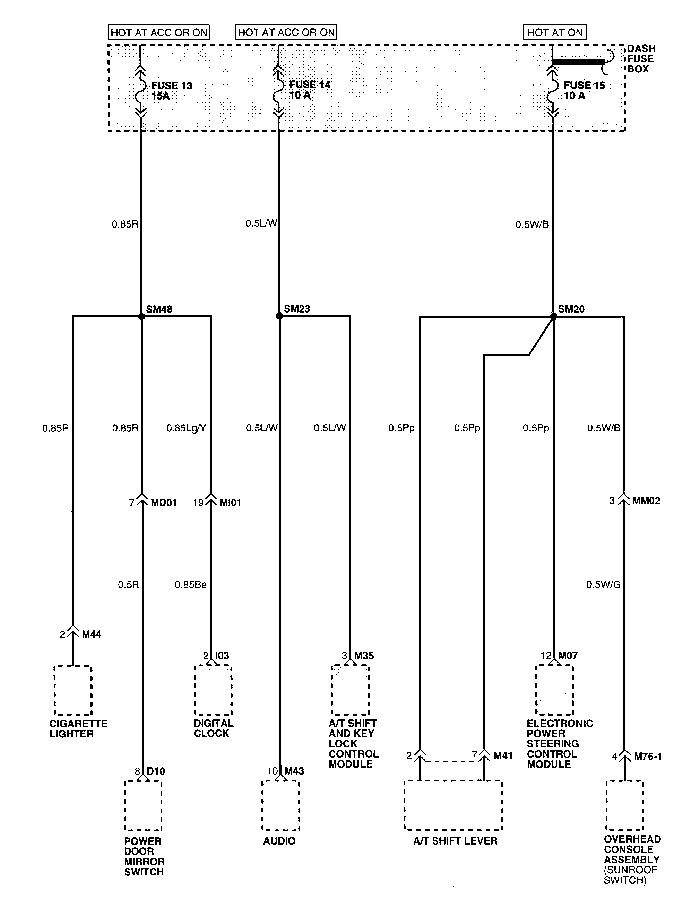

DASH FUSE BOX DETAILS SYSTEM (3)

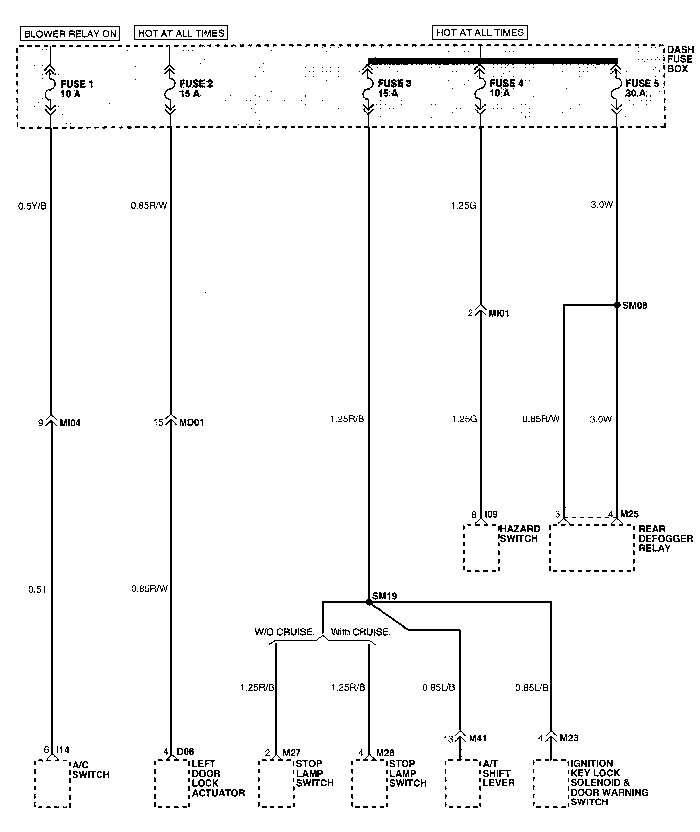

DASH FUSE BOX DETAILS SYSTEM (4)

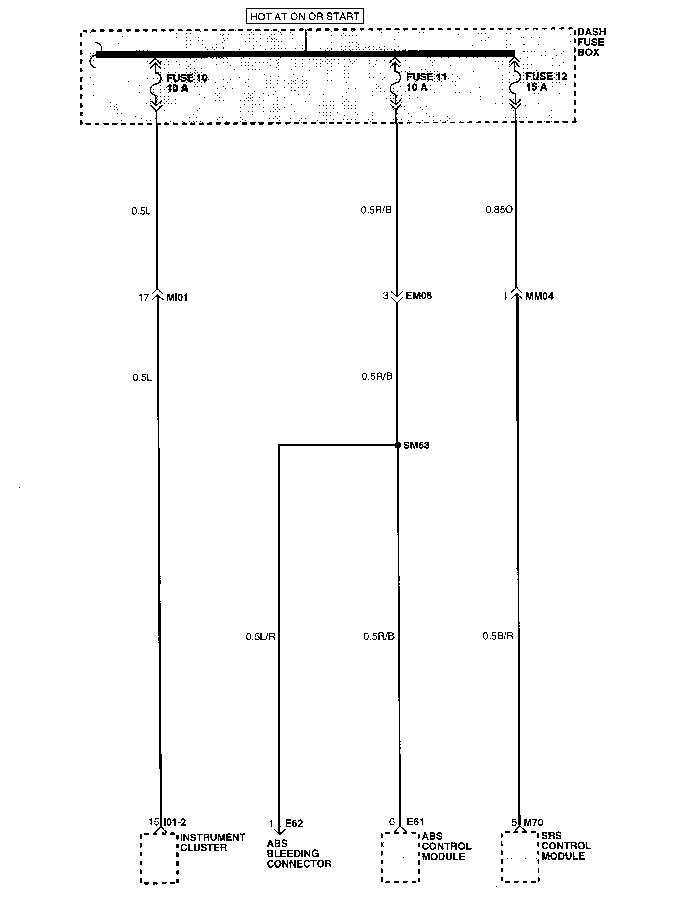

DASH FUSE BOX DETAILS SYSTEM (5)

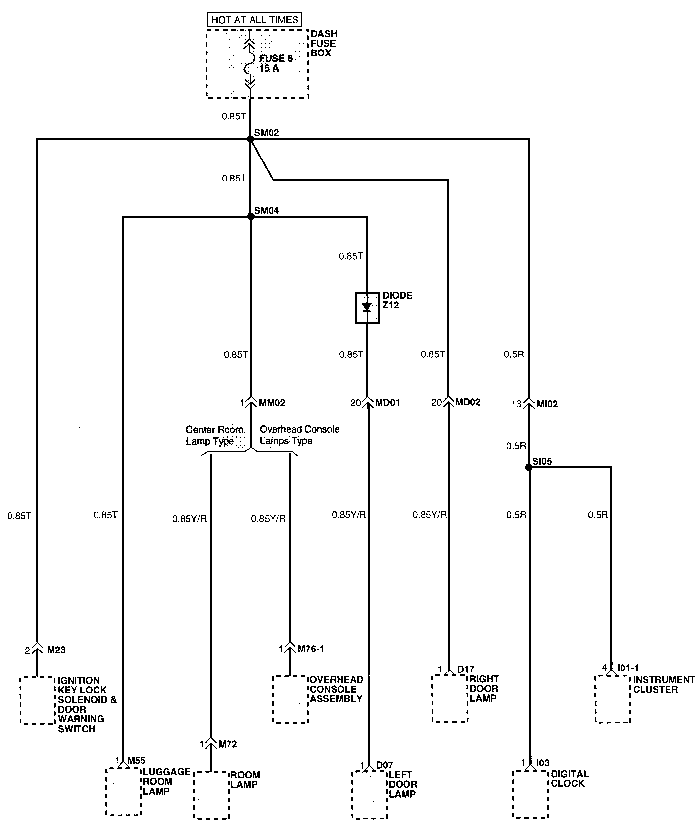

DASH FUSE BOX DETAILS SYSTEM (6)

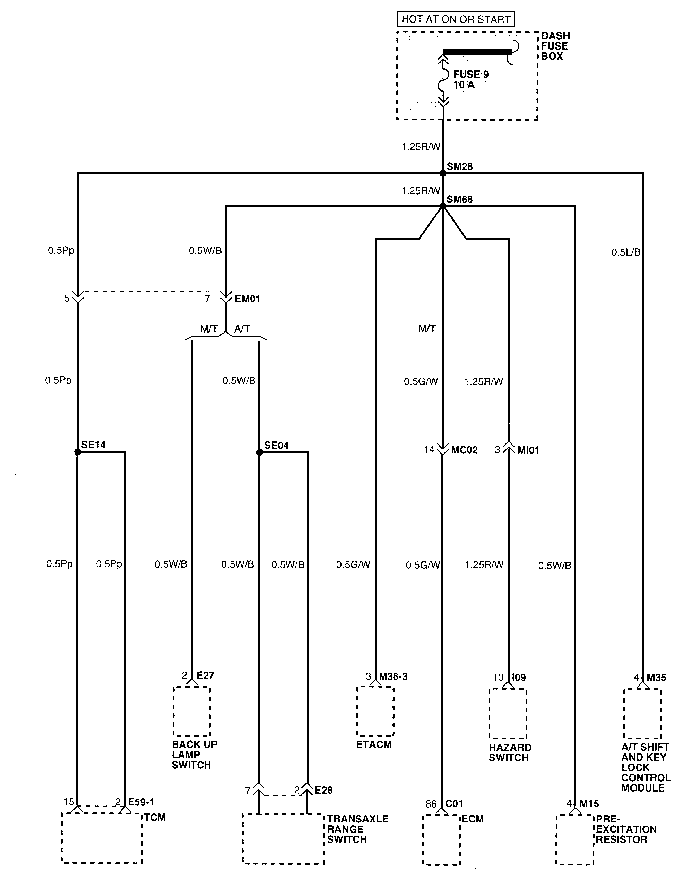

DASH FUSE BOX DETAILS SYSTEM (7)
