ELECTRICAL TROUBLESHOOTING MANUAL
  Applies to: Hyundai Coupe/Tiburon 1999
GROUP
Transaxle/Transmission Automatic Transaxle System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual


AUTOMATIC TRANSAXLE CONTROL SYSTEM SCHEMATICS

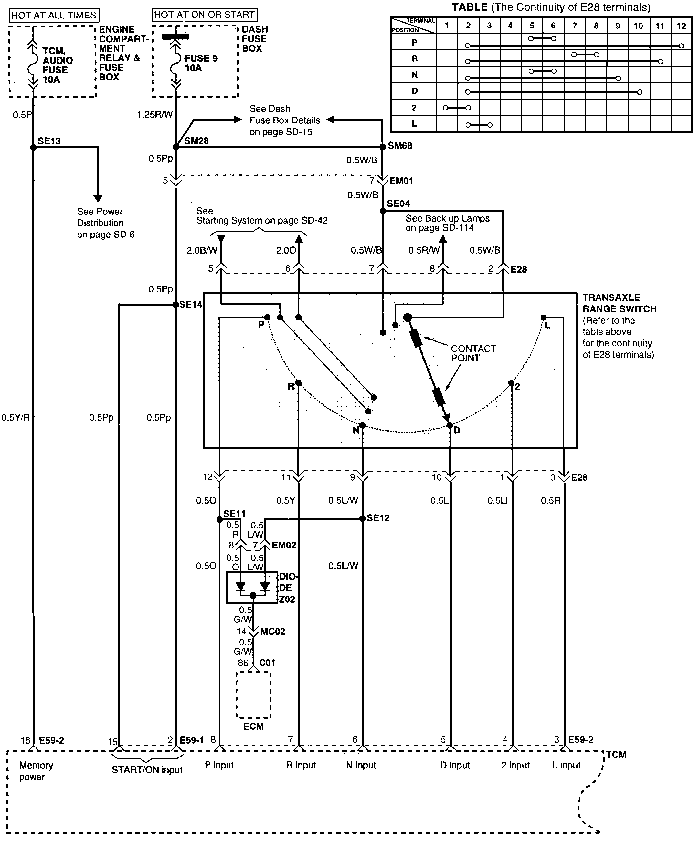

AUTOMATIC TRANSAXLE CONTROL SYSTEM (1)

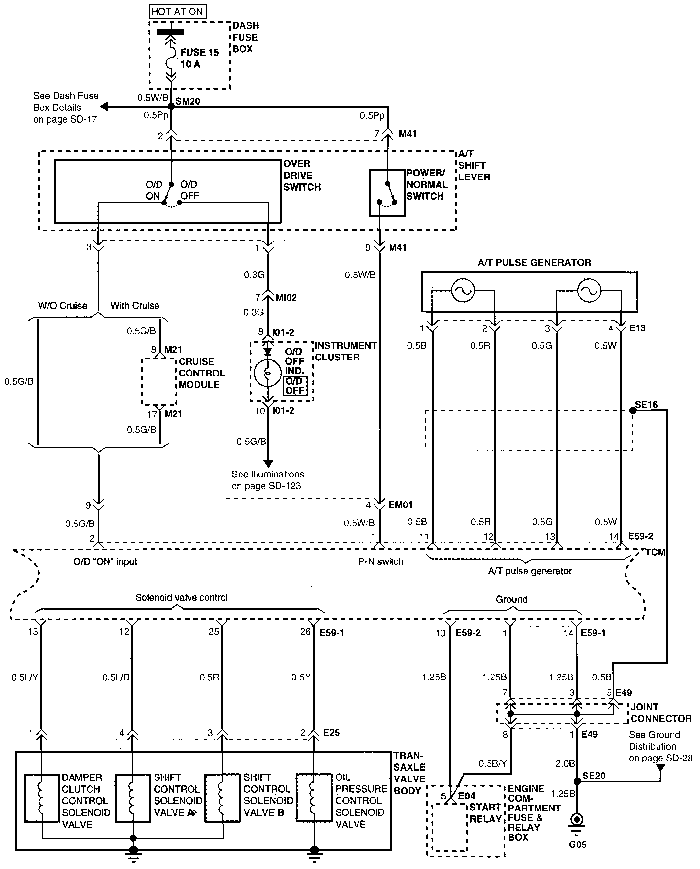

AUTOMATIC TRANSAXLE CONTROL SYSTEM (2)

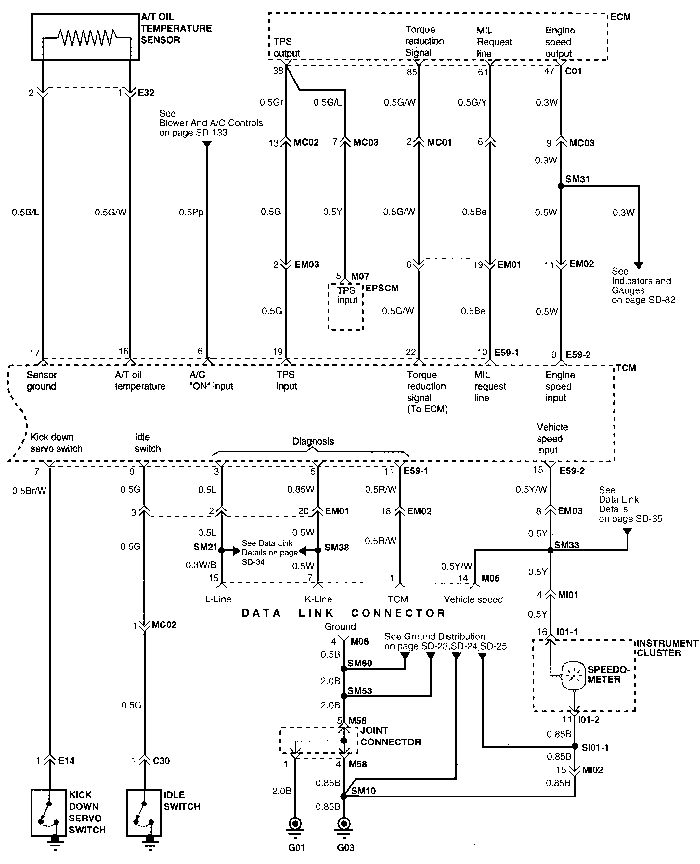

AUTOMATIC TRANSAXLE CONTROL SYSTEM (3)
