ELECTRICAL TROUBLESHOOTING MANUAL
  Applies to: Hyundai Coupe/Tiburon 1999
GROUP
Brake Systems Anti-lock Brake System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual


ANTI-LOCK BRAKE SYSTEM SCHEMATICS

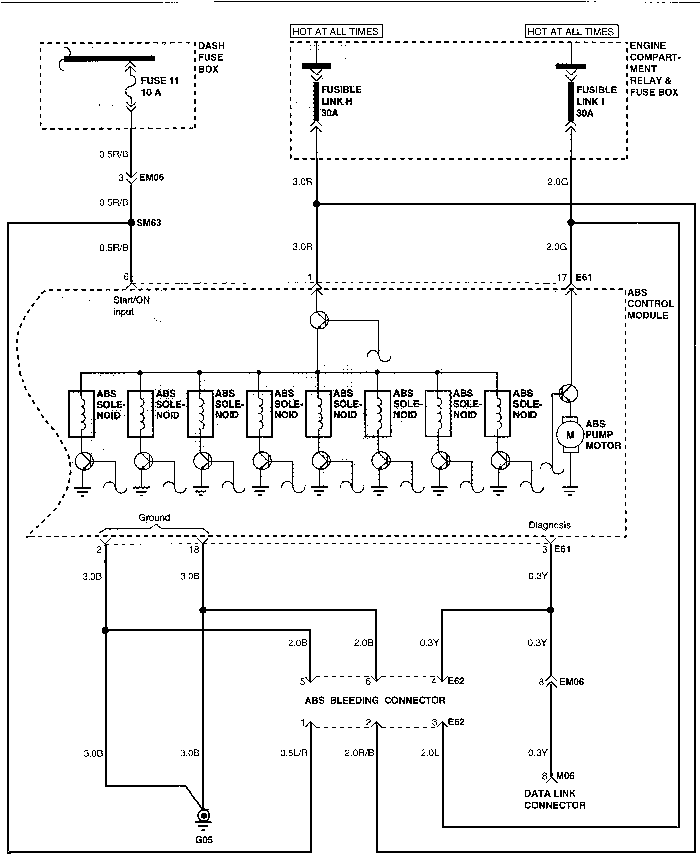

ANTI-LOCK BRAKE SYSTEM (1)

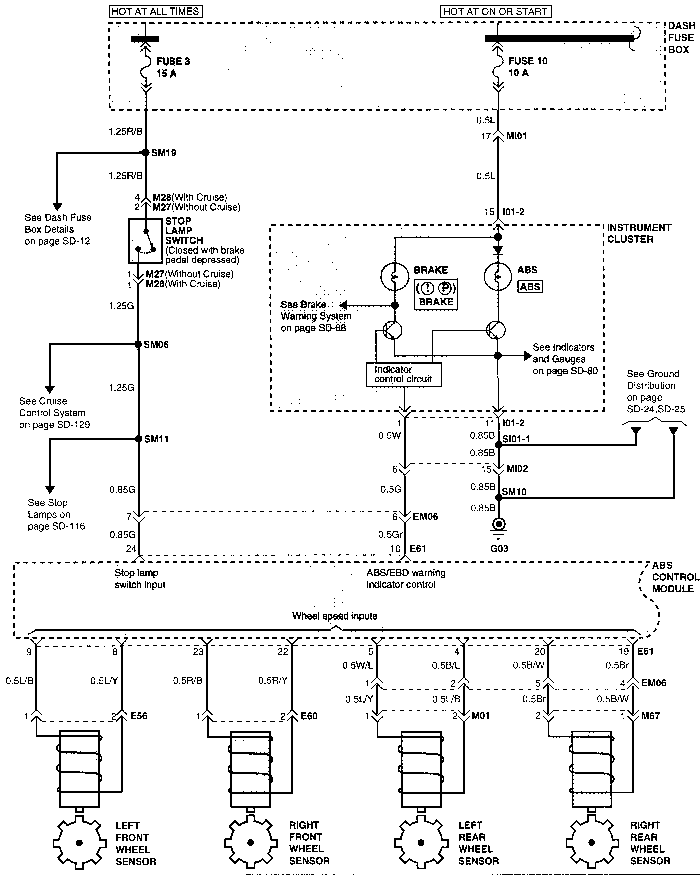

ANTI-LOCK BRAKE SYSTEM (2)
