ELECTRICAL TROUBLESHOOTING MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Body Electrical System Wiring
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

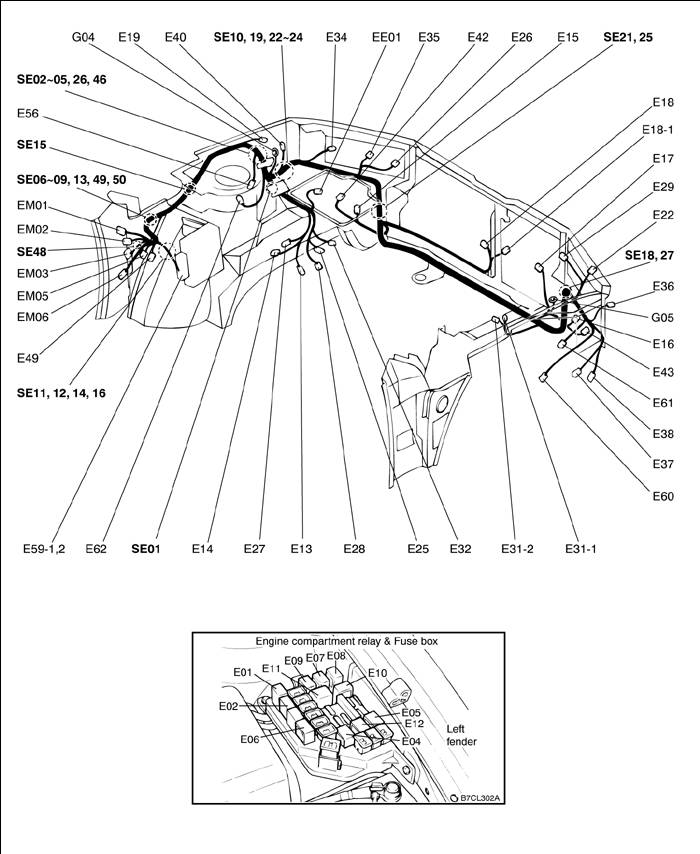

ENGINE HARNESS
ENGINE HARNESS
E01
Head lmap relay (High)
E31-1
Generator (B+)
E02
DRL relay
E31-2
Generator (L, S)
E04
Start relay
E32
A/T oil temperature sensor
E05
Condenser fan relay
E34
Left front park/Turn signal lamp
E06
Head lamp relay (Low)
E35
Left head lamp
E07
Radiator fan relay
E36
Right front park/Turn signal lamp
E08
A/C relay
E37
Front washer motor
E09
Front fog lamp relay
E38
Rear washer motor
E10
Tail lamp relay
E40
DRL control module
E11
Blower relay
E42
Left position lamp
E12
Horn relay
E43
Right position lamp
E13
A/T pulse generator
E49
Joint connector
E14
Kick down servo switch
E56
Left front wheel sensor
E15
Left front fog lamp
E59-1
Transaxle control module (TCM)
E16
Right front fog lamp
E59-2
Transaxle control module (TCM)
E17
A/C pressure switch
E60
Right front wheel sensor
E18
Left horn
E61
ABS control module
E18-1
Right horn
E62
ABS bleeding connector
E19
DRL resistor
EE01
Connection with BATTERY CABLE harness
E22
Right head lamp
EM01
Connection with MAIN harness
E25
Transaxle valve body (A/T solenoid)
EM02
Connection with MAIN harness
E26
Radiator fan motor
EM03
Connection with MAIN harness
E27
Back-up lamp switch (M/T)
EM05
Connection with MAIN harness
E28
Transaxle range switch
EM06
Connection with MAIN harness
E29
Condenser fan motor
G04
Ground
E30
Start solenoid
G05
Ground
