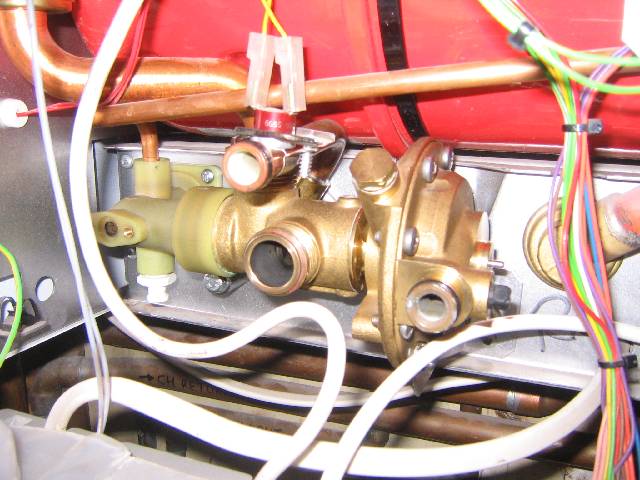

The diverter valve and manifold refitted. Note the DHW thermistor at the top of the picture - this may require reseating and new heatsink compound if this has been disturbed during the removal of surrounding parts.
