SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Engine Mechanical System Main Moving System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

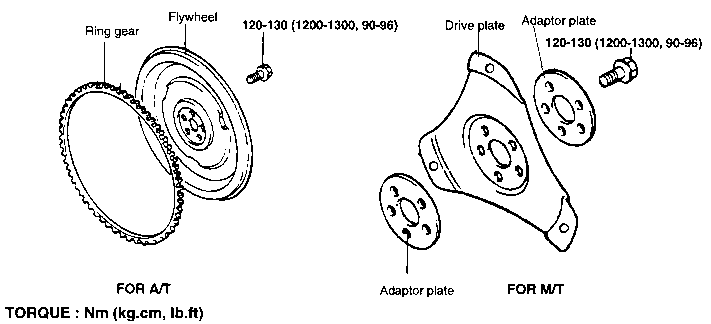

COMPONENTS

M/T: Manual Transaxle Vehicles

A/T: Automatic Transaxle Vehicles

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DISASSEMBLY
  1. Remove the transaxle and clutch.

  1. Remove the flywheel.

INSPECTION
  1. Check the clutch disc contacting surface of the flywheel for damage and wear. Replace the flywheel if excessively damaged or worn.

  1. Check the clutch disc contacting surface of the flywheel for runout.

    MEASUREMENT SPECIFICATION
    Flywheel run-out 0.1 mm ( 0.004 in )
  1. Check the ring gear for damage, crack and wear, and replace if necessary.

REASSEMBLY

Install the flywheel assembly and tighten the bolts to the specified torque.

TORQUE SPECIFICATION
Flywheel bolt 120-130 Nm ( 1200-1300 kg·cm, 90-96 lb·ft )
