SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Body Electrical System Electronic Time & Alarm Control System (ETACS)
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

REMOVAL AND INSTALLATION
  1. Disconnect the battery negative terminal.

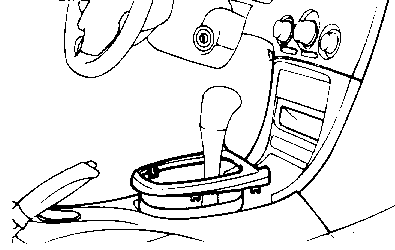

  1. Remove the shift lever boot using a (-) driver.

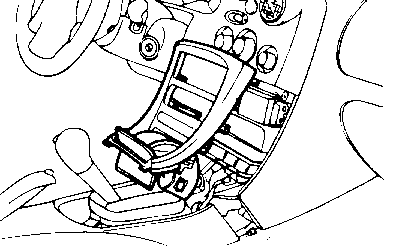

  1. Remove the center facia panel.

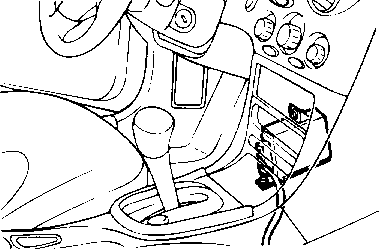

  1. After removal of ETACM (Electronic Time and Alarm Control Module) mounting bolts (2EA), disconnect its connector.

  1. Installation is the reverse order of removal procedure.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION

Check that the following components operates normally as timing chart.

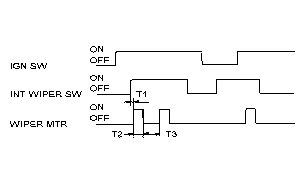

Variable Intermittent Wiper
  1. T1: 0.15 sec MAX.

  1. T2: 0.7 sec. (Time of wiper motor 1 rotation)

  1. T3 : 1.5 0.7 sec. (at VR=0 kOHM) ~ 10.5 1 sec. (at VR=500 kOHM)

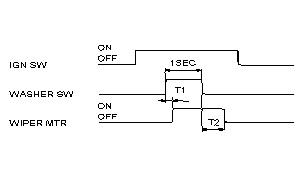

Wiper Motor Related to Washer
  1. T1: 0.5 sec.

  1. T2: 2.5 - 3.8 sec

  1. This function should be operated preferentially even though the variable intermittent wiper is operating.

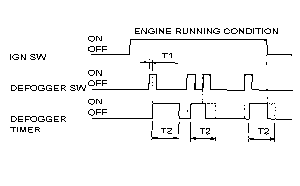

Rear Defogger Timer
  1. T1: 0.1 sec. MAX.

  1. T2: 15 3 min.

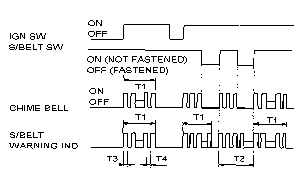

Seat Belt Warning
  1. Operating characteristic:

  1. T1:6 1 sec. T2: MAX. 6 1 sec. T3, T4: 0.3 0.1 sec.

Door Warning
  1. Operating characteristic:

  1. T1, T2: 0.3 0.1 sec.

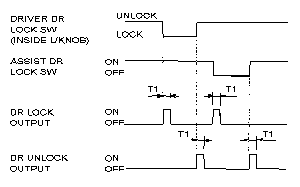

Central Door Lock/Unlock
  1. Operating characteristic:

  1. T1: 0.5 0.1 sec.

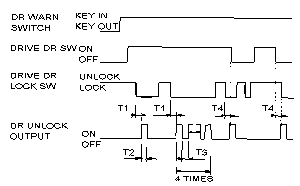

Ignition key reminder
  1. Operating characteristic:

  1. T1: 0.5 sec. T2: 1 sec. T3: 0.5 sec. T4: Max. 0.5 sec.
