SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Body Electrical System Power Mirrors
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION

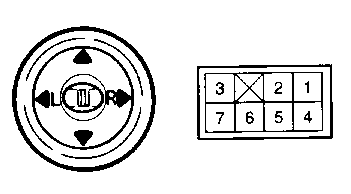

MIRROR SWITCH
  1. Remove the remote control mirror switch from crash pad.

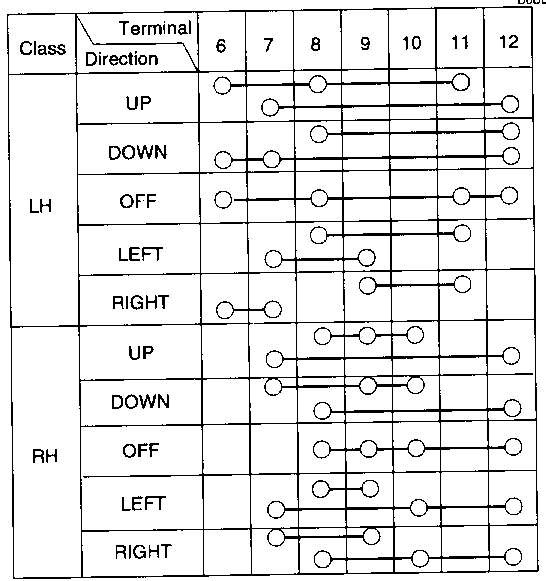

  1. Check for continuity between the terminals in each switch position according to the table,

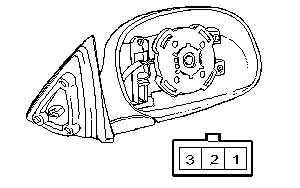

MIRROR ACTUATOR
  1. Disconnect the connector from the mirror.

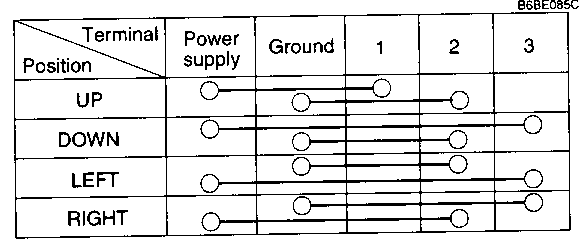

  1. Check that the actuator operates correctly as below table.
