SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Engine Electrical System Cruise Control System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

COMPONENTS LOCATION

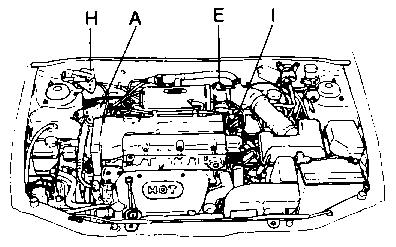

ENGINE COMPARTMENT

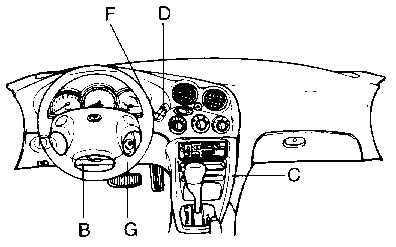

INTERIOR
NAME
 SYMBOL
 NAME
 SYMBOL
Actuator
 A
 Speed control switch (in multi function switch)
 F
Clutch switch
 B
 Stop lamp switch
 G
Cruise control module
 C
 Vacuum motor
 H
Cruise main switch
 D
 Vehicle speed sensor
 I
Pulley assembly
 E

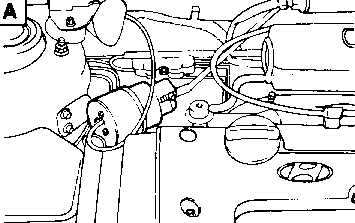

A - Actuator

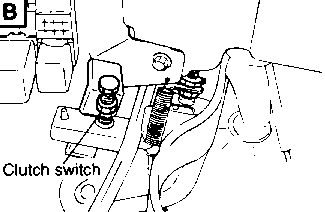

B - Clutch switch

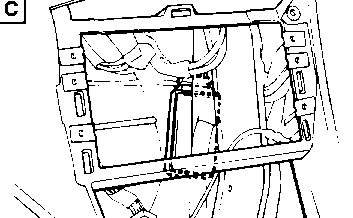

C - Cruise control module

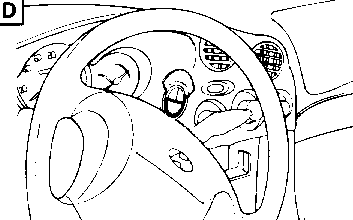

D - Cruise main switch

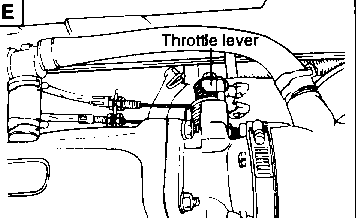

E - Pulley assembly

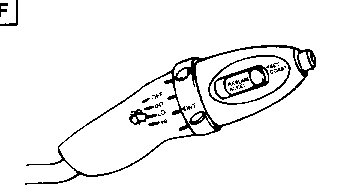

F - Speed control switch (in multi-function switch)

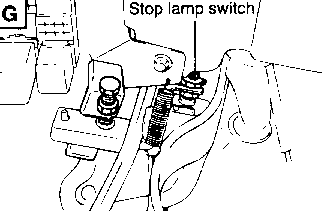

G - Stop lamp switch

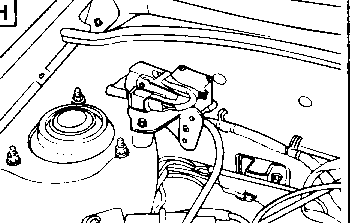

H - Vacuum motor

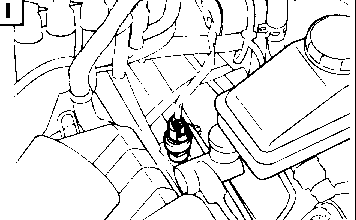

I - Vehicle speed sensor
