SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Fuel System MFI Control System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

LOCATION OF MFI COMPONENTS
  1. MAF (Mass Air Flow) sensor

    - Refer to FL-39

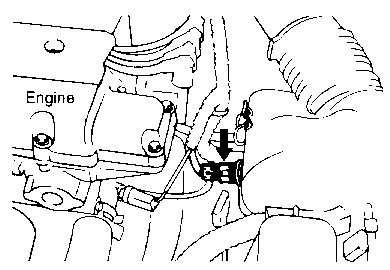

  1. Intake Air Temperature (IAT) sensor

    - Refer to FL-71

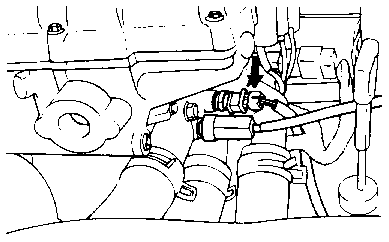

  1. Engine Coolant Temperature (ECT) sensor

    - Refer to FL-32

  1. Throttle Position Sensor (TPS)

    - Refer to FL-77

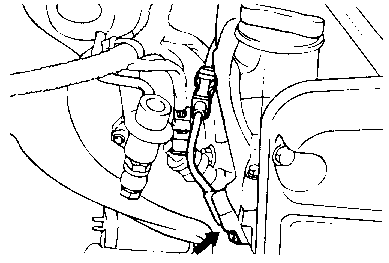

  1. Camshaft Position (CMP) sensor

    - Refer to FL-46

  1. Crankshaft Position (CKP) sensor

    - Refer to FL-49

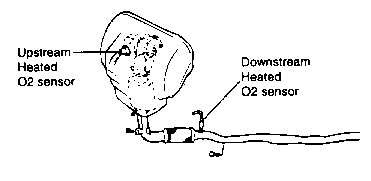

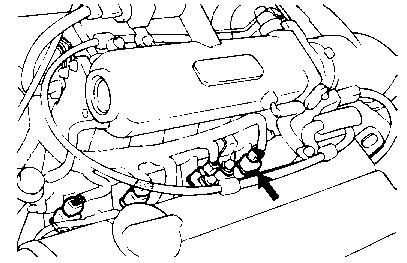

  1. Heated Oxygen Sensor (HO2S)

    - Refer to FL-60

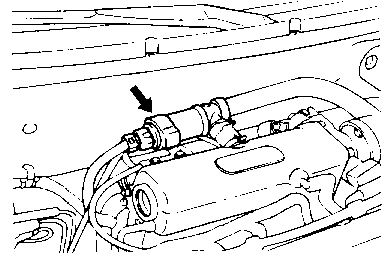

  1. Injectors

    - Refer to FL-43

  1. Idle Speed Control (ISC) actuator

    - Refer to FL-67

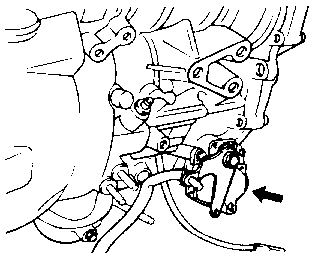

  1. Vehicle Speed Sensor (VSS)

    - Refer to FL-36

  1. Transaxle Range (TR) switch

    - Refer to FL-89

  1. Ignition switch

    - Refer to FL-91

  1. Engine Control Module (ECM)

    - Refer to FL-53

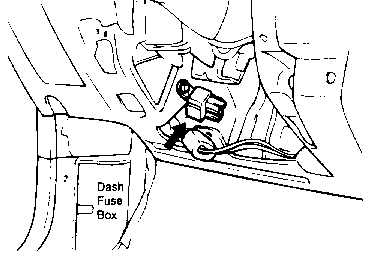

  1. Air conditioning relay

  1. EVAP. canister purge solenoid valve

    - Refer to FL-86

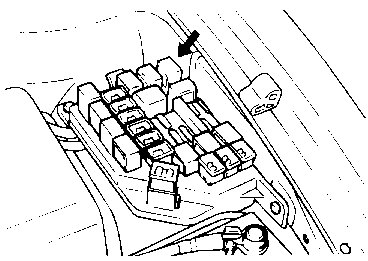

  1. MFI control relay

    - Refer to FL-55

  1. Ignition coil

    - Refer to FL-84

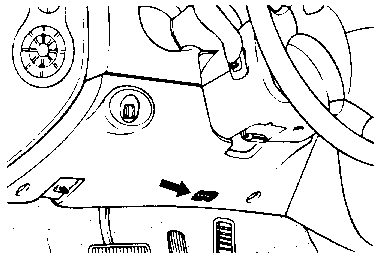

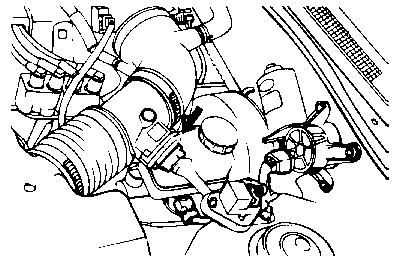

  1. Data Link Connector (DLC)

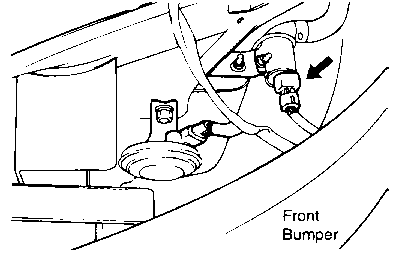

  1. Acceleration sensor

    - Refer to FL-81

  1. Knock sensor

    - Refer to FL-74

  1. Canister Close Valve (CCV)

    - Refer to FL-95

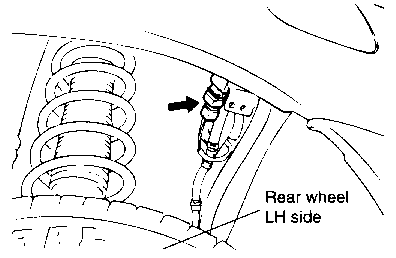

  1. Fuel Tank Pressure (FTP) sensor

    - Refer to FL-92

  1. Fuel Pump Check Connector

    - Refer to FL-57

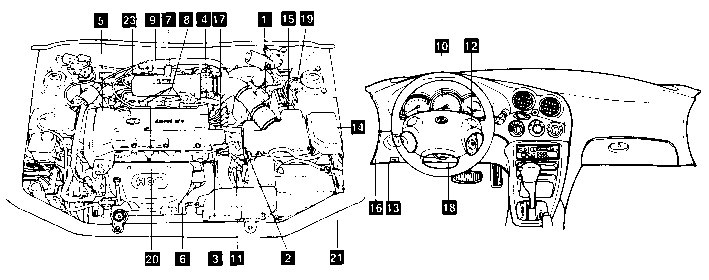

1 - MAF Sensor
2 - IAT Sensor
3 - ECT Sensor
4 - TP Sensor
5 - CMP Sensor
6 - CKP Sensor
7 - O2 Sensor
8 - Injector
9 - ISC Actuator
10 - Vehicle speed sensor
11 - TR switch
13 - ECM
14 - Air/con Relay
15 - EVAP Solenoid Value
16 - MFI Control Relay
17 - Ignition Coil
18 - Data Link Connector
19 - Acceleration Sensor
20 - Knock Sensor
21 - Canister Close Valve
22 - Fuel Tank Pressure Sensor
