SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2001
GROUP
Transaxle/Transmission Manual Transaxle System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

DRIVE SHAFT OIL SEAL REPLACEMENT
  1. Disconnect the drive shaft from the transaxle (Refer to DS GROUP)

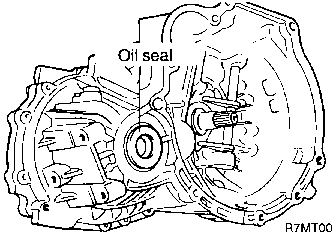

  1. Using a flat-tip screwdriver, remove the oil seal.

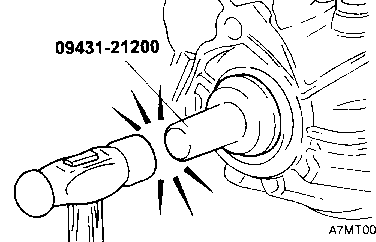

  1. Using the special tool (09431-21200), tap the drive shaft oil seal into the transaxle.

  1. Apply a coating of gear oil to the lip of the oil seal.

Transaxle gear oil: Hypoid gear oil, SAE 75W/85W conforming to API GL-4 or higher.
