SERVICE MANUAL
  Applies to: Hyundai Coupe/Tiburon 1998-2000
GROUP
Engine Electrical System Starting System
Return to Main Menu(s):      Mechanical Manual      Electrical Manual

INSPECTION OF CLUTCH START SYSTEM (IGNITION LOCK SYSTEM)

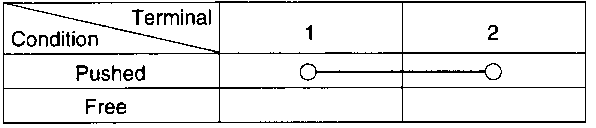

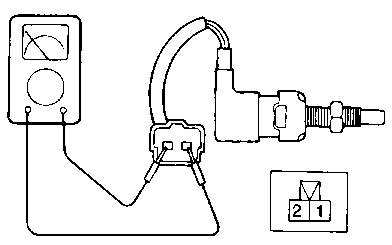

CHECK CLUTCH PEDAL

Check that pedal height, pedal freeplay and clutch pedal clevis pin play are correct. (Refer to clutch section)

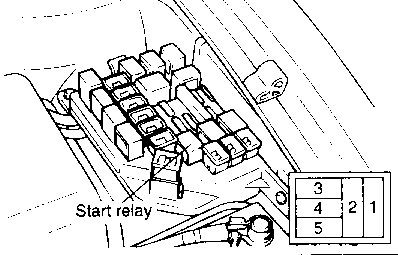

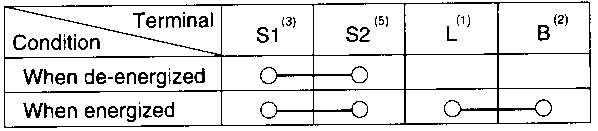

CHECK STARTER RELAY

Remove the starter relay and check continuity between the terminals. If the continuity is not as specified, replace the relay.

CHECK IGNITION LOCK SWITCH

Remove the ignition lock switch and check continuity between the terminals. If the continuity is not as specified, replace the switch.
