SERVICE MANUAL
Applies to:
Hyundai Coupe/Tiburon
1998-2001
GROUP
Fuel System
Carburetion System
Return to Main Menu(s):
Mechanical Manual
Electrical Manual

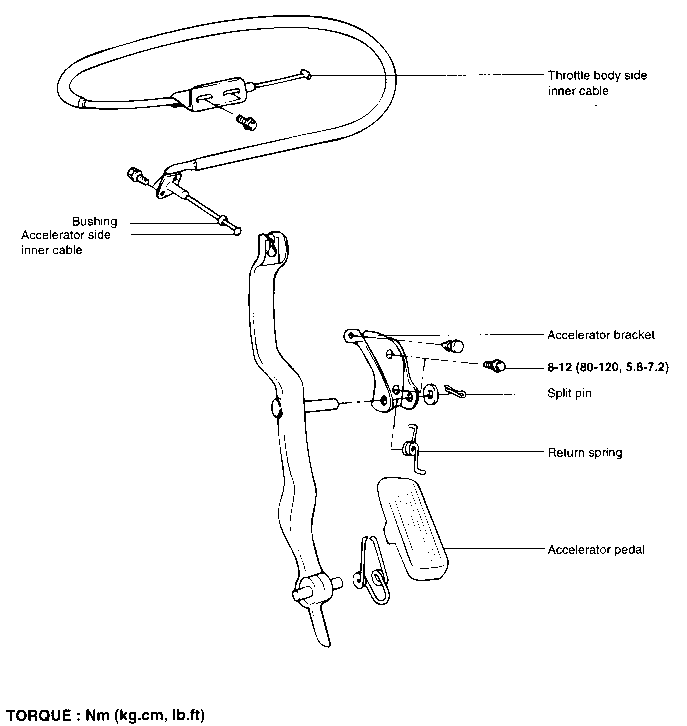

COMPONENTS
Return to Main Menu(s):
Mechanical Manual
Electrical Manual
REMOVAL
Remove the bushing and inner cable on the accelerator arm side.
Remove the bolts of the accelerator arm bracket and remove.
Return to Main Menu(s):
Mechanical Manual
Electrical Manual
INSPECTION
Check the inner and outer cable for damage.
Check the cable for smooth movement.
Check the accelerator arm for deformation.
Check the return spring for deterioration.
Check the connection of the bushing to the metal fitting.
Return to Main Menu(s):
Mechanical Manual
Electrical Manual
INSTALLATION

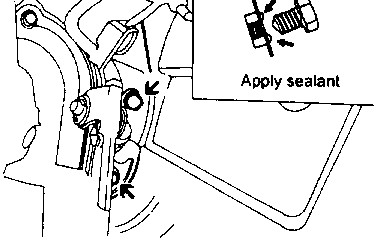

When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.

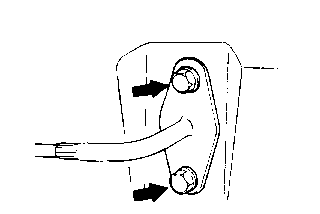

Apply sealant to the bolt mounting hole, and tighten the accelerator arm bracket.
TORQUE SPECIFICATION
Accelerator arm bracket bolts
8-12
Nm
(
80-120
kg·cm
,
5.8-7.2
lb·ft
)
