REMOVAL AND INSTALLATION
SUCTION HOSE
NOTE
  1. While installing each of the removed refrigerant line, replace the O-ring (if exists) at each fitting with new one and apply specified lubricant.
  2. Observe the specified tightening torque at each fitting.
  3. Be careful not to bend or twist refrigerant lines in order to install them easily.
  4. After installation, evacuate, charge and test the air conditioning system.
  1. Discharge refrigerant from the air conditioning system.

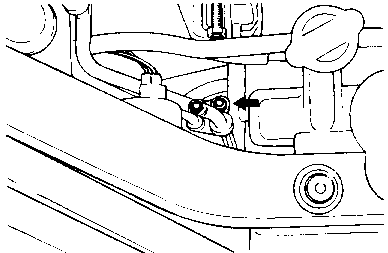

  1. Disconnect evaporator side fitting of the suction hose.

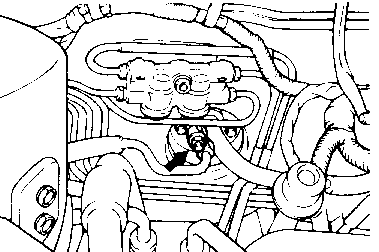

  1. Disconnect compressor side fitting of the suction hose.

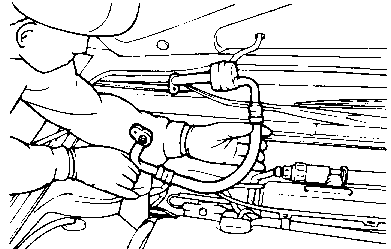

  1. Remove the suction hose.

  1. Installation is the reverse order of removal.

DISCHARGE HOSE
  1. Discharge refrigerant from the air conditioning system.

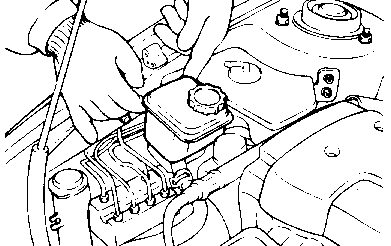

  1. Detach the power steering fluid reservoir from its mounting bracket by pulling upward.

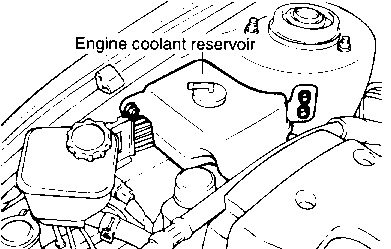

  1. Remove the engine coolant reservoir.

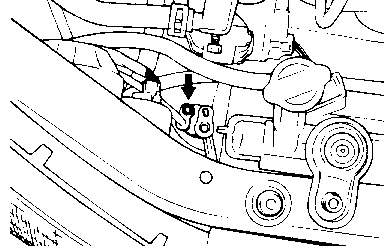

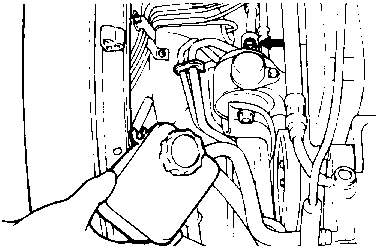

  1. Remove the mounting bolt of the discharge hose mounting clamp.

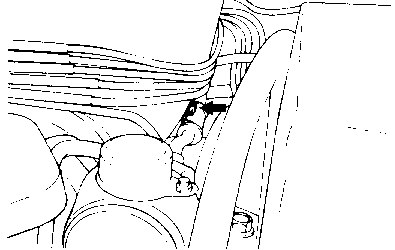

  1. Disconnect compressor side fitting of the discharge hose.

  1. Disconnect discharge pipe side fitting of the discharge hose.

  1. Remove the discharge hose.

  1. Installation is the reverse order of removal.

DISCHARGE PIPE
  1. Discharge refrigerant from the air conditioning system.

  1. Detach the power steering fluid reservoir from its mounting bracket by pulling upward.

  1. Remove the engine coolant reservoir.

  1. Remove the mounting bolt of the discharge hose mounting clamp.

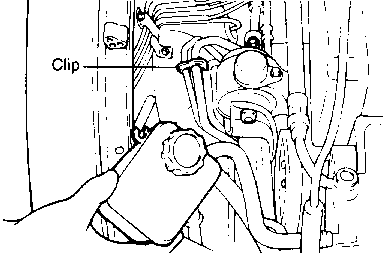

  1. Remove the clip which is holding both of the discharge pipe and the liquid tube (C).

  1. Disconnect compressor side fitting of the discharge pipe.

  1. Disconnect condenser side fitting of the discharge pipe.

  1. Remove the discharge pipe.

  1. Installation is the reverse order of removal.

LIQUID TUBE (A)
  1. Discharge refrigerant from the air conditioning system.

  1. Remove the radiator upper grille.

  1. Disconnect condenser side fitting of the liquid tube (A).

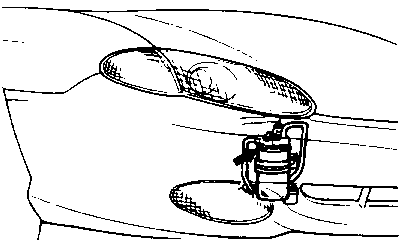

  1. Disconnect receiver drier side fitting of the liquid tube (A).

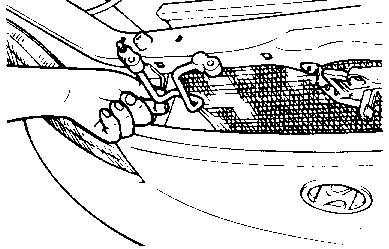

  1. Remove the liquid tube (A).

  1. Installation is the reverse order of removal.

LIQUID TUBE (B)
  1. Discharge refrigerant from the air conditioning system.

  1. Remove the air intake duct assembly.

  1. Remove the radiator upper mounting clamps.

  1. Remove the liquid tube (A). (Refer to the "Removal of the liquid tube (A) on page HA-75)

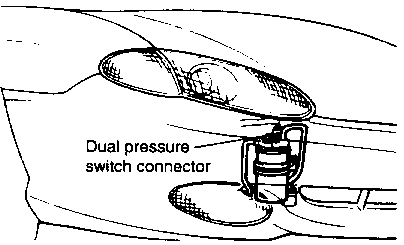

  1. Disconnect the dual pressure switch connector from the receiver/drier.

  1. Disconnect condenser side fitting of the discharge pipe.

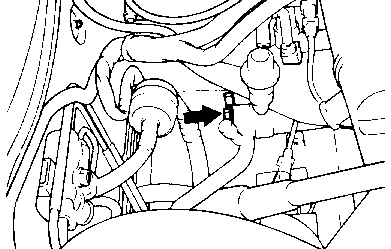

  1. Disconnect liquid tube (B) side fitting of the liquid tube (C).

  1. Remove the mounting nut of the liquid tube (B) at the side of the liquid tube (C).

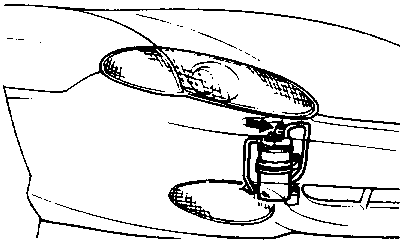

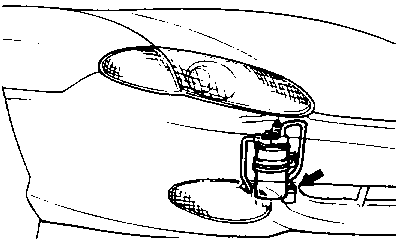

  1. Disconnect the receiver/drier side fitting of the liquid tube (B).

  1. Remain the liquid tube (B) in removed state.

    NOTE
    Because of the receiver/drier and its mounting bracket, it is impossible to take out the liquid tube (B) even though it has been removed.

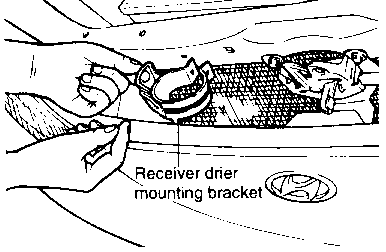

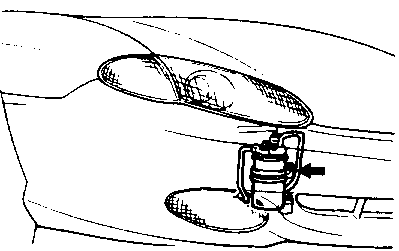

  1. Remove the receiver/drier mounting bolt from the receiver/drier mounting bracket.

  1. Remove the receiver/drier from its mounting bracket.

  1. Remove the mounting bolts of the receiver/drier mounting bracket.

  1. Remove the receiver/drier mounting bracket.

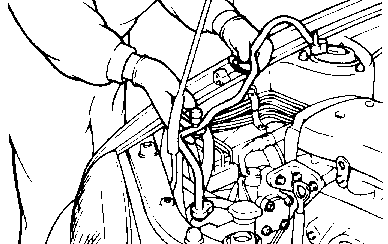

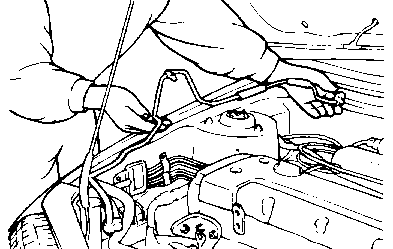

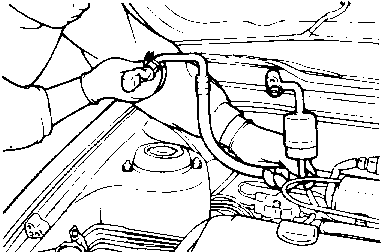

  1. Take out the liquid tube (B).

    CAUTION
    Be careful not to damage or bend the liquid tube (B)
  1. Installation is the reverse order of removal.

LIQUID TUBE (C)
  1. Discharge refrigerant from the air conditioning system.

  1. Remove the discharge pipe. (Refer to the "Removal of the discharge pipe" on page HA-74)

  1. Disconnect the evaporator side fitting of the liquid tube (C).

  1. Disconnect the liquid tube (B) side fitting of the liquid tube (C).

  1. Remove the liquid tube (C).

  1. Installation is the reverse order of removal.

Return to Main Menu(s):      Mechanical Manual      Electrical Manual

FITTINGS AND O-RINGS
Fitting
Description
O-ring
Size (in.)
O-ring
Color
Tightening torque
Nm (kg.cm, lb.ft)
A
Evaporator to suction hose
5/8
Orange
12-15 (120-150, 8.6-11.1)
B
Suction hose to compressor
5/8
Orange
12-15 (120-150, 8.6-11.1)
C
Compressor to discharge hose
1/2
Orange
12-15 (120-150, 8.6-11.1)
D
Discharge hose to discharge pipe
1/2
Orange
12-15 (120-150, 8.6-11.1)
E
Discharge pipe to condenser
1/2
Orange
12-15 (120-150, 8.6-11.1)
F
Condenser to liquid tube (A)
5/16
Light green
5-6 (50-60, 3.7-4.4)
G
Liquid tube (A) to receiver drier
5/16
Light green
5-6 (50-60, 3.7-4.4)
H
Receiver drier to liquid tube (B)
5/16
Light green
5-6 (50-60, 3.7-4.4)
I
Liquid tube (B) to liquid tube (C)
5/16
Light green
5-6 (50-60, 3.7-4.4)
J
Liquid tube (C) to evaporator
5/16
Light green
5-6 (50-60, 3.7-4.4)
