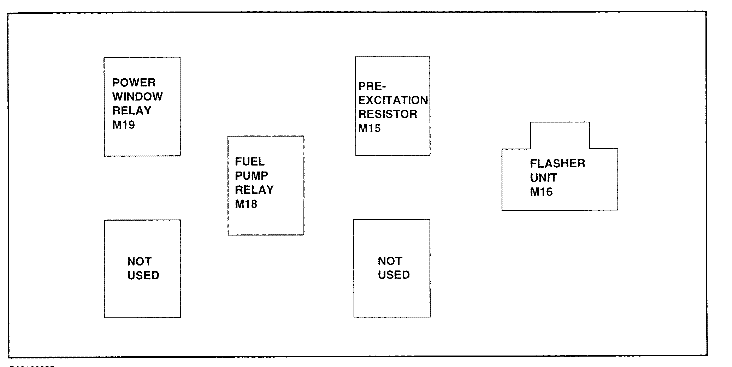

ELECTRICAL TROUBLESHOOTING MANUAL | |
Applies to: Hyundai Coupe/Tiburon 1999 | |
GROUP | |
Body Electrical System | Fuse/Relay Box Details |

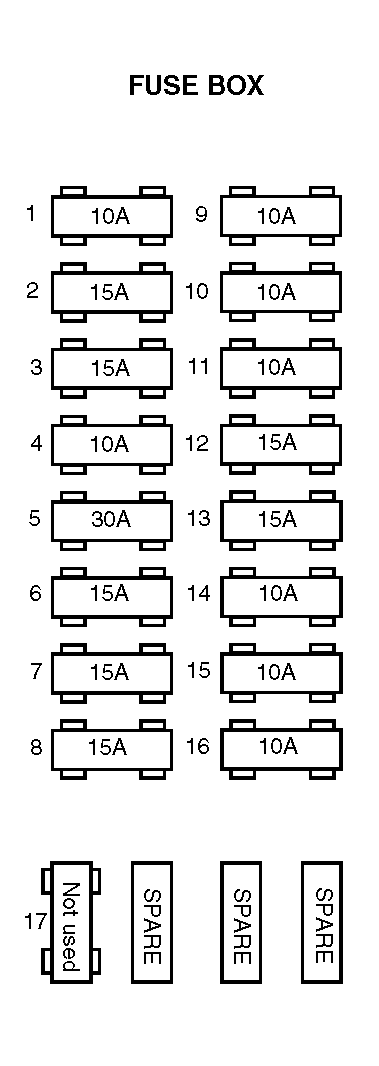

CIRCUIT |
||
Fuse |
Amperages |
Circuit |
1 |
10A |
A/C controls |
2 |
15A |
Power door locks |
3 |
15A |
Stop lamps, Ignition key lock, A/T shift lock |
4 |
10A |
Hazard warning |
5 |
30A |
Rear glass defogger |
6 |
15A |
Room lamp, Clock |
7 |
15A |
Rear wiper & Washer |
8 |
15A |
Front wiper & washer, ETACS |
9 |
10A |
Back-up lamps, TCM, ECM |
10 |
10A |
Instrument cluster |
11 |
10A |
ABS |
12 |
15A |
Air bag |
13 |
15A |
Cigarette lighter, Power door mirrors, clock |
14 |
10A |
Audio, A/T interlock |
15 |
10A |
EPS, Sunroof, O/D switch, Power/Normal switch |
16 |
10A |
Cruise, Head lamps, Fog lamps, Power window, Blower controls, |
17 |
- |
Not used |

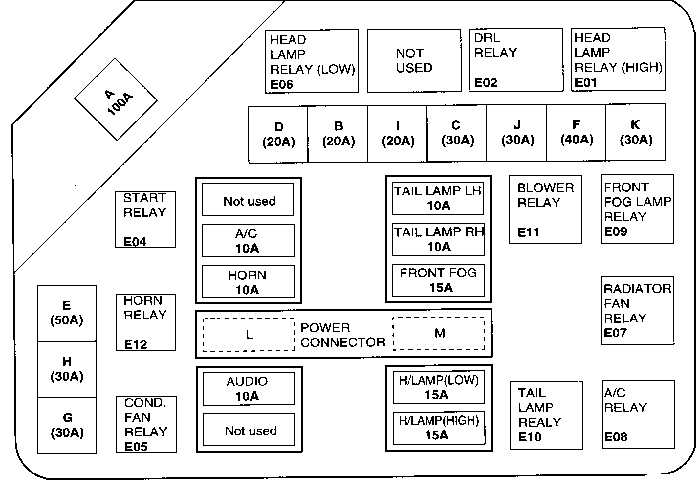

Memo |
Description
|
Amperages
|
Circuit protected
|
Remark
|
Fusible link
|
|||
A (Dark blue) |
100A |
Generator |
|
B (Blue) |
20A |
Engine control relay |
|
C (Pink) |
30A |
Power windows |
|
D (Blue) |
20A |
A/C condenser fan control |
|
E (Red) |
50A |
Battery power source |
|
F (Green) |
40A |
Head lamps, Tail lamps |
|
G (Pink) |
30A |
Radiator fan control |
|
H (Pink) |
30A |
ABS control |
|
I (Pink) |
30A |
ABS control |
|
J (Pink) |
30A |
Ignition power source |
|
K (Pink) |
30A |
Blower control |
|
Fuse
|
|||
A/C |
10A |
A/C condition control |
|
HORN |
10A |
Horn |
|
AUDIO |
10A |
Audio, TCM, ECM |
|
TAIL LAMP (LH) |
10A |
Left tail lamps |
|
TAIL LAMP (RH) |
10A |
Right tail lamps |
|
FRONT FOG LAMP |
15A |
Front fog lamps |
|
H/LAMP (LOW) |
15A |
Head lamps |
|
H/LAMP (HIGH) |
15A |
Head lamps |
|
Power connector
|
|||
L |
- |
Fuse 6 (15A), Audio Fuse (10A) |
|
M |
- |
Fuse 14 (10A) |
|
