ELECTRICAL TROUBLESHOOTING MANUAL
  Applies to: Hyundai Coupe/Tiburon 1999
GROUP
Body Electrical System Power Distribution
Return to Main Menu(s):      Mechanical Manual      Electrical Manual


POWER DISTRIBUTION SYSTEM SCHEMATICS

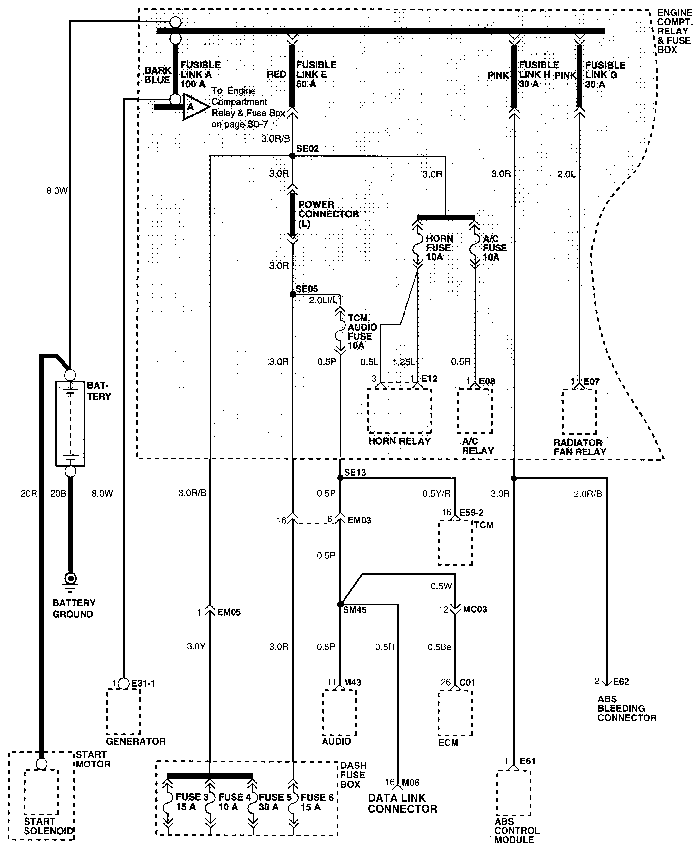

POWER DISTRIBUTION SYSTEM (1)

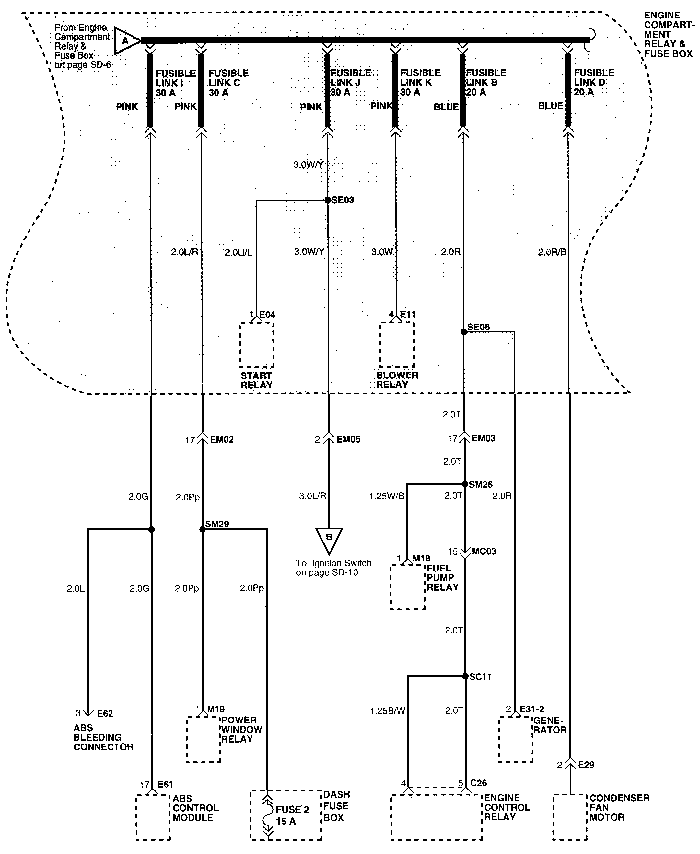

POWER DISTRIBUTION SYSTEM (2)

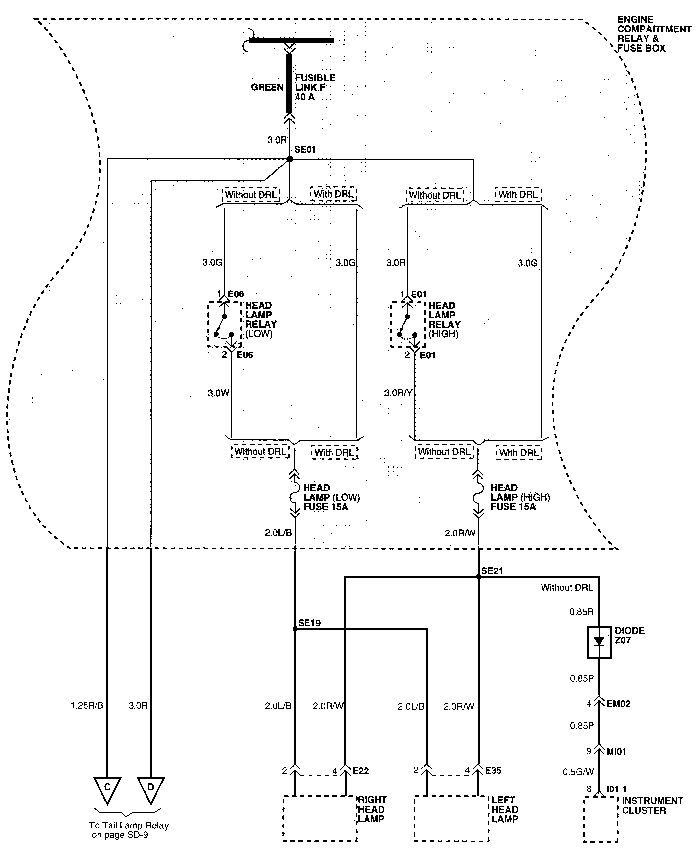

POWER DISTRIBUTION SYSTEM (3)

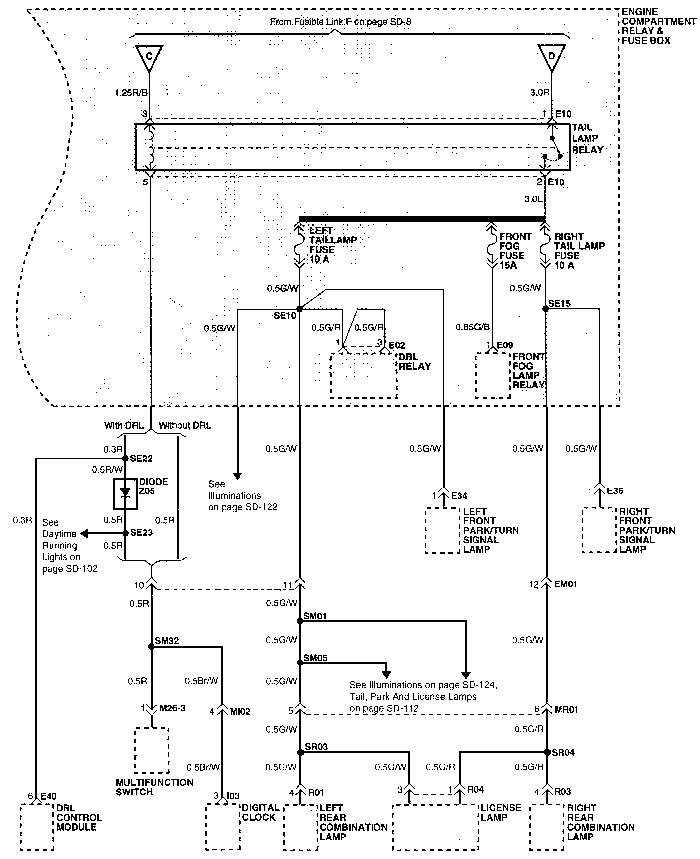

POWER DISTRIBUTION SYSTEM (4)

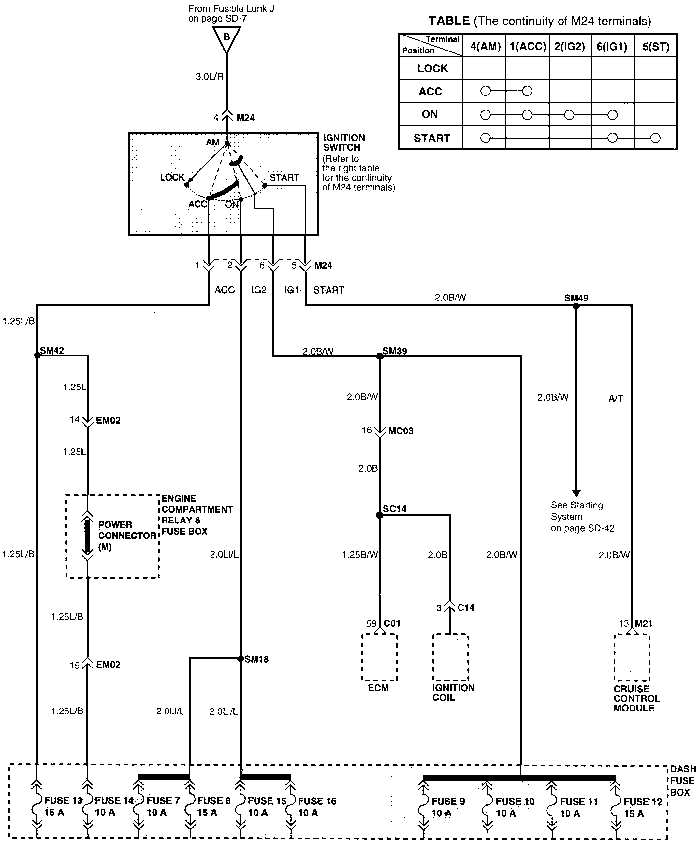

POWER DISTRIBUTION SYSTEM (5)
