| ELECTRICAL TROUBLESHOOTING MANUAL | |
| Applies to: Hyundai Coupe/Tiburon 1999 | |
| GROUP | |
| Body Electrical System | Ground Distribution |
| ELECTRICAL TROUBLESHOOTING MANUAL | |
| Applies to: Hyundai Coupe/Tiburon 1999 | |
| GROUP | |
| Body Electrical System | Ground Distribution |
|

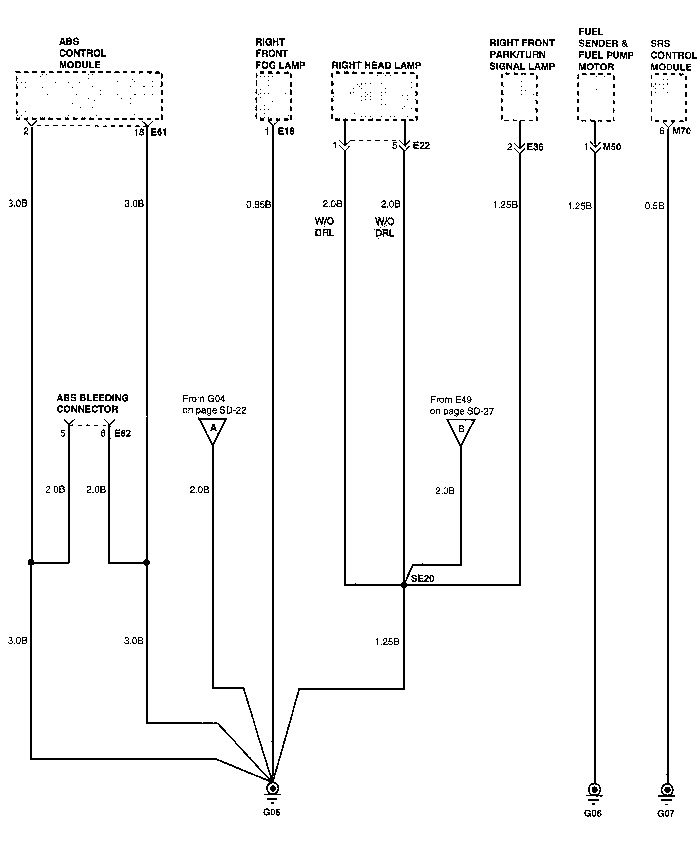

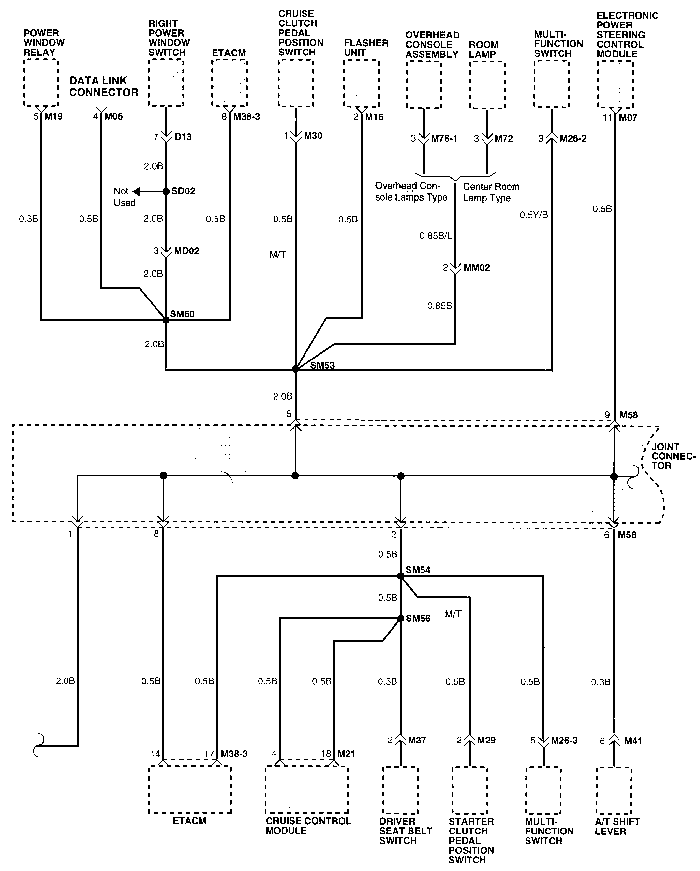

GROUND DISTRIBUTION SYSTEM (1)
|
|
|

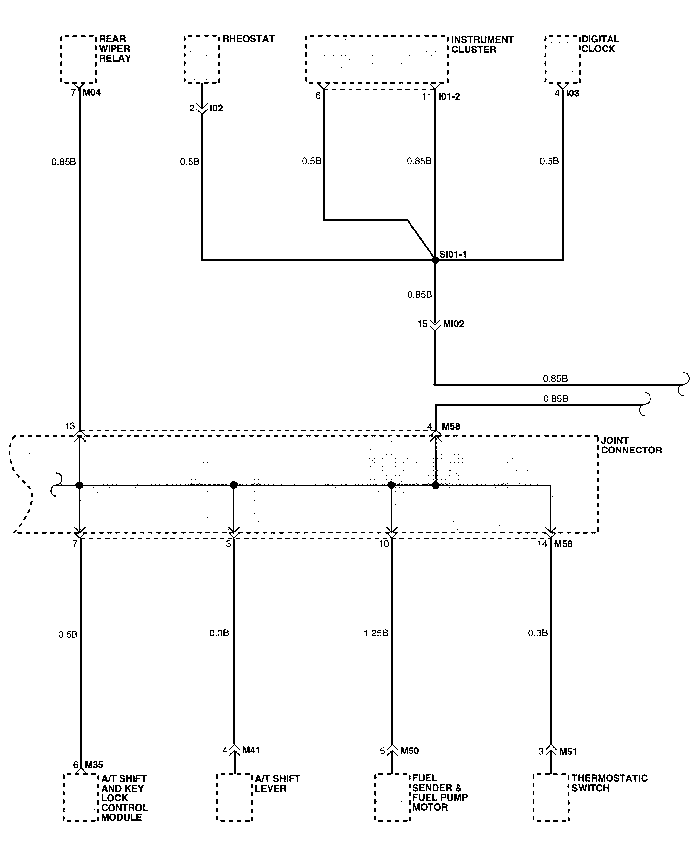

GROUND DISTRIBUTION SYSTEM (2)
|
|
|

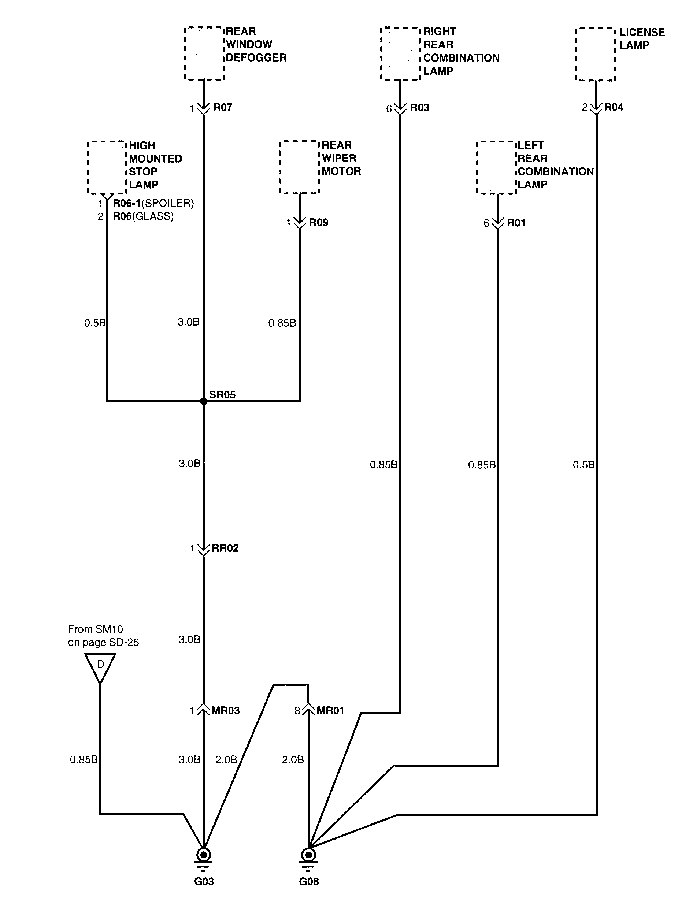

GROUND DISTRIBUTION SYSTEM (3)
|
|
|

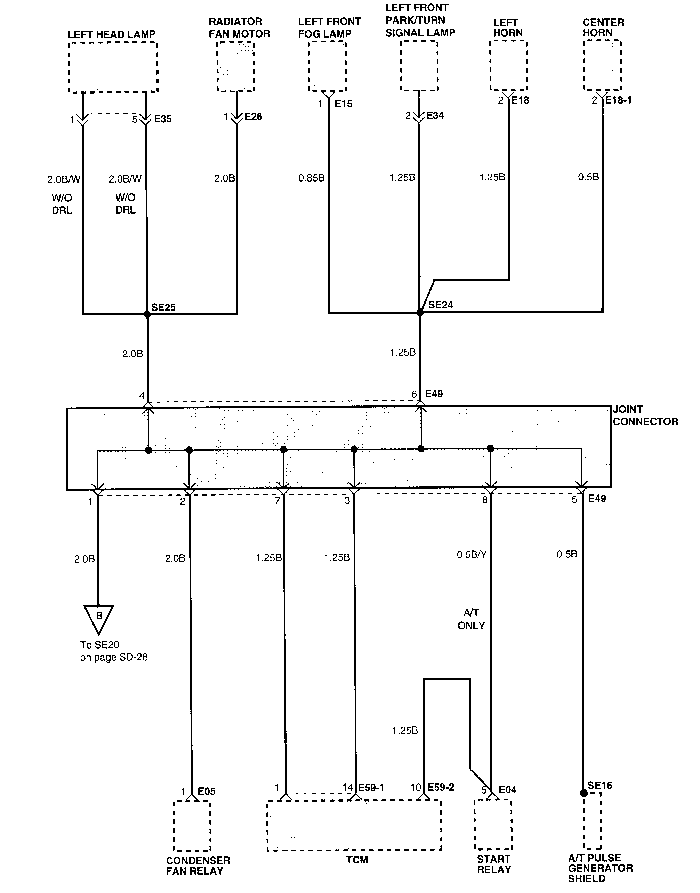

GROUND DISTRIBUTION SYSTEM (4)
|
|
|

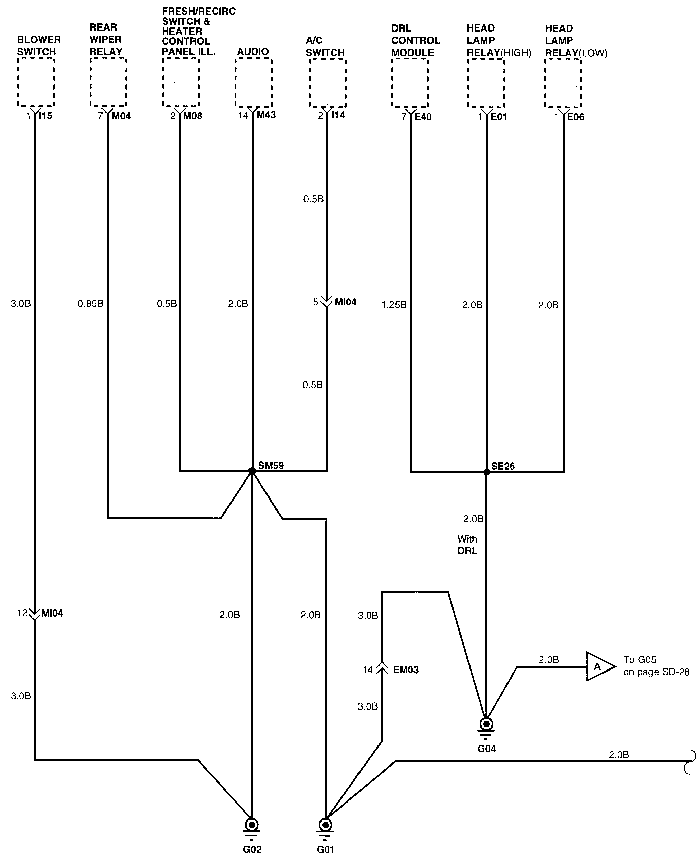

GROUND DISTRIBUTION SYSTEM (5)
|
|
|

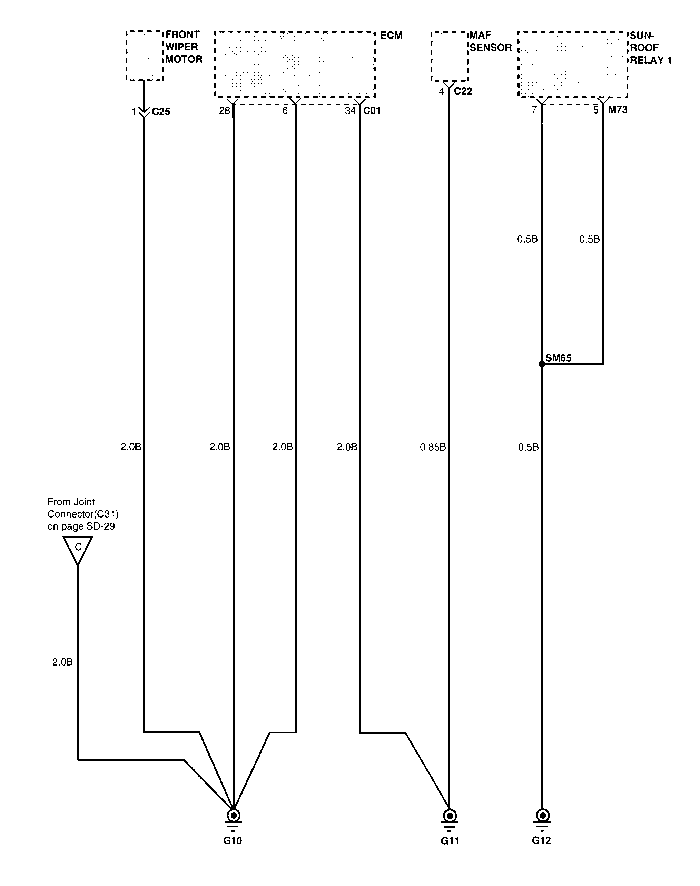

GROUND DISTRIBUTION SYSTEM (6)
|
|
|

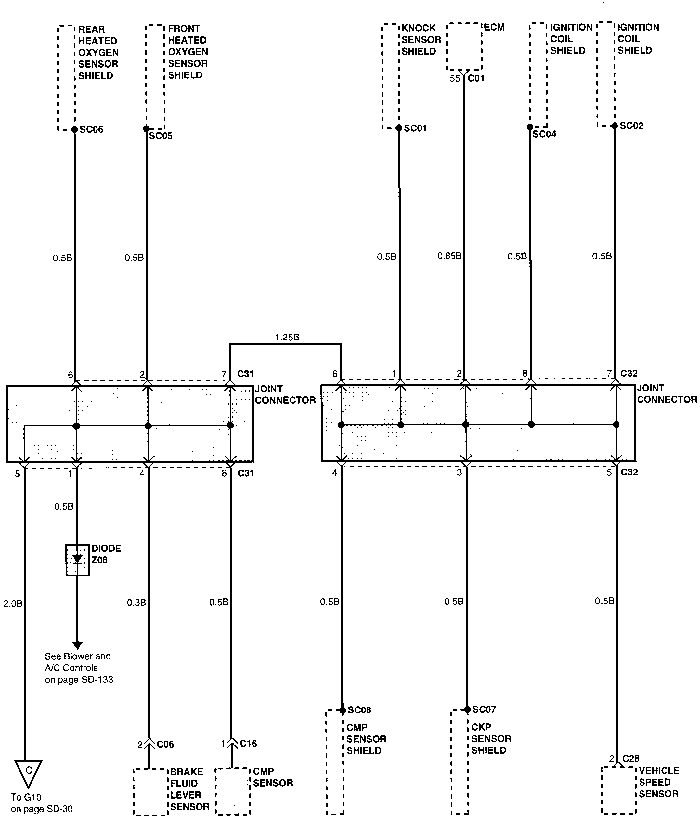

GROUND DISTRIBUTION SYSTEM (7)
|
|
|

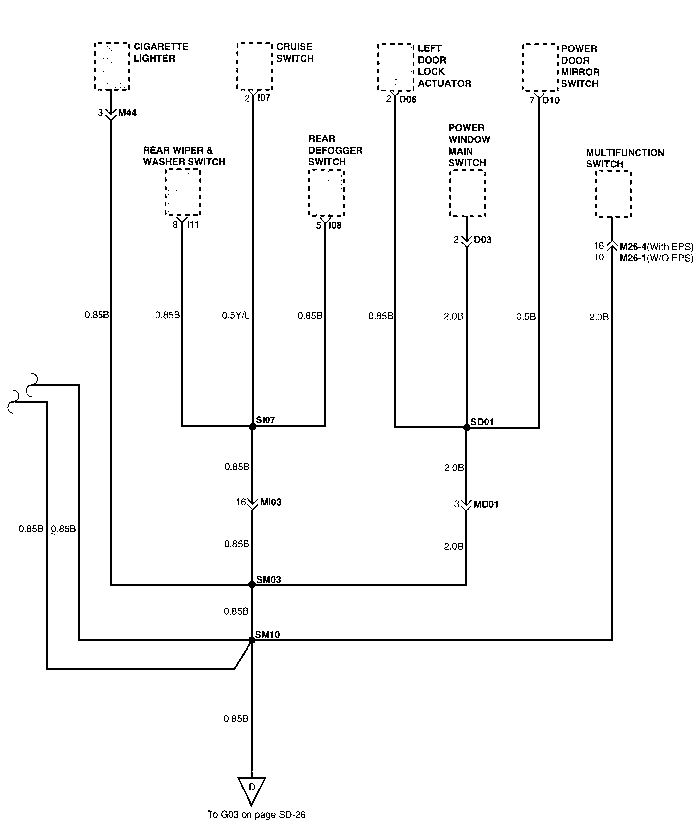

GROUND DISTRIBUTION SYSTEM (8)
|
|
|
GROUND DISTRIBUTION SYSTEM (9)
|
|
