MAIN HARNESS
MAIN HARNESS (1)
M01
Left Rear Wheel Sensor
M46
Cansiter close valve (CCV)
M04
Rear wiper relay
M47
Left door switch
M05
Rom pack controller
M50
Fuel sender & fuel pump motor
M06
Data link connector
M51
Thermostatic switch (A/T Thermist)
M07
Electronic power steering control module
M52
Left quarter speaker
M08
Fresh/Recirc switch & Heater control panel illumination
M53
Right quarter speaker
M15
Pre-excitation resistor
M55
Luggage room lamp
M16
Flasher unit
M56
Blower motor
M18
Fuel pump relay
M57
Blower resistor
M19
Power window relay
M58
Joint connector
M20
Acoustic warning chime buzzer
M59
Fuel tank pressure sensor
M21
Cruise control module
M67
Right rear wheel sensor
M23
Ignition key lock solenoid & Door warning switch
MC01
Connection with CONTROL harness
M24
Ignition switch
MC02
Connection with CONTROL harness
M25
Rear defogger relay
MC03
Connection with CONTROL harness
M26-1
Multifunction switch (Without EPS)
MD01
Connection with LH DOOR harness
M26-2
Multifunction switch
MD02
Connection with RH DOOR harness
M26-3
Multifunction switch
MI01
Connection with INSTRUMENT harness
M26-4
Multifunction switch (With EPS)
MI02
Connection with INSTRUMENT harness
M26-5
Multifunction switch (Angular sensor)
MI03
Connection with INSTRUMENT harness
M26-6
Multifunction switch (Horn switch)
MI04
Connection with INSTRUMENT harness
M26-7
Multifunction switch
MM02
Connection with ROOF harness
M27
Stop lamp switch (Without cruise)
MM04
Connection with AIR BAG harness
M28
Stop lamp switch (With cruise)
MR01
Connection with LUGGAGE ROOM harness
M29
Starter clutch pedal position switch
MR02
Connection with TAIL GATE EXT. harness
M30
Cruise clutch pedal position switch
MR03
Connection with TAIL GATE EXT. harness
M32
Chime bell
EM01
Connection with ENGINE harness
M35
A/T shift and key lock control module
EM02
Connection with ENGINE harness
M36
Parking brake switch
EM03
Connection with ENGINE harness
M37
Driver seat belt switch
EM05
Connection with ENGINE harness
M38-3
ETACM
EM06
Connection with ENGINE harness
M41
A/T shift lever
G01
Ground
M43
Audio
G02
Ground
M44
Cigarette lighter
G03
Ground


G06
Ground

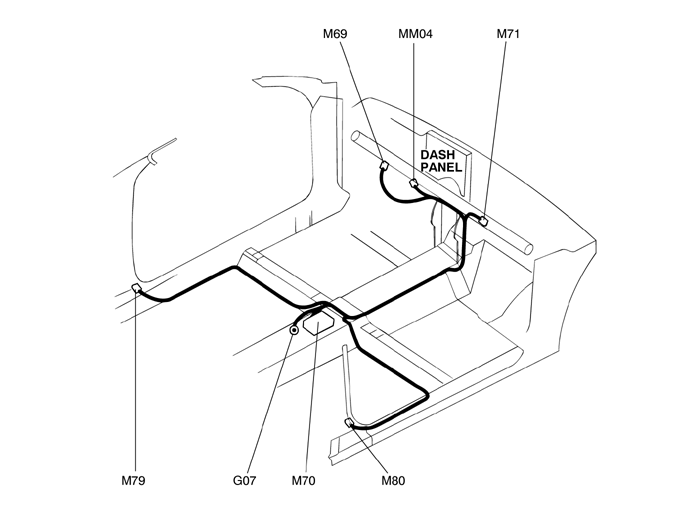

MAIN HARNESS (AIR BAG)
M69
Steering wheel (Contact coil)
M80
Passenger seat belt pretensioner
M70
SRS control module
MM04
Connection with MAIN harness
M71
Passenger air bag
G07
Ground
M79
Driver seat belt pretensioner

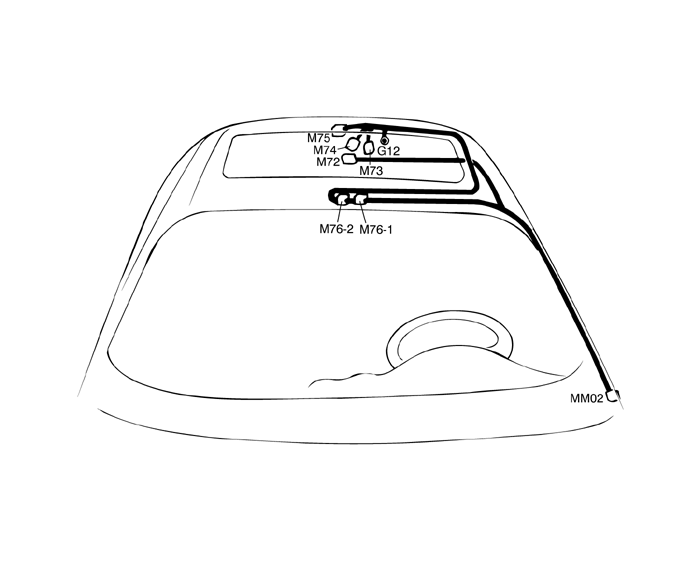

MAIN HARNESS (ROOF)
M72
Room lamp
M76-1
Overhead console assembly
M73
Sunroof relay 1
M76-2
Overhead console assembly
M74
Sunroof relay 2
MM02
Connection with MAIN harness
M75
Sunroof motor
G12
Ground
