| ELECTRICAL TROUBLESHOOTING MANUAL | |
| Applies to: Hyundai Coupe/Tiburon 1998-2001 | |
| GROUP | |
| Body Electrical System | Wiring |
| ELECTRICAL TROUBLESHOOTING MANUAL | |
| Applies to: Hyundai Coupe/Tiburon 1998-2001 | |
| GROUP | |
| Body Electrical System | Wiring |
|

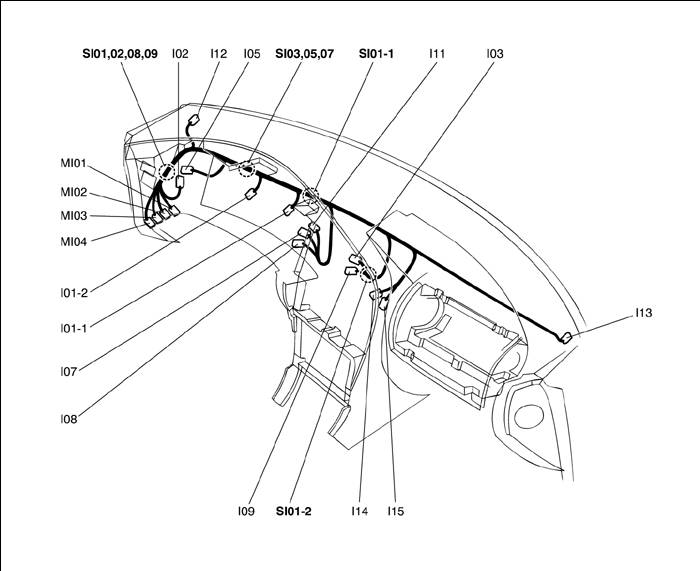

I01-1
|
Instrument cluster |
I12 |
Left tweeter speaker |
|
I01-2 |
Instrument cluster |
I13 |
Right tweeter speaker |
|
I02 |
Rheostat |
I14 |
A/C switch |
|
I03 |
Digital Clock |
I15 |
Blower switch |
|
I05 |
Front fog lamp switch |
MI01 |
Connection with MAIN harness |
|
I07 |
Cruise switch |
MI02 |
Connection with MAIN harness |
|
I08 |
Rear defogger switch |
MI03
|
Connection with MAIN harness |
|
I09 |
Hazard switch |
MI04
|
Connection with MAIN harness |
|
I11 |
Rear wiper & washer switch |
|
|
