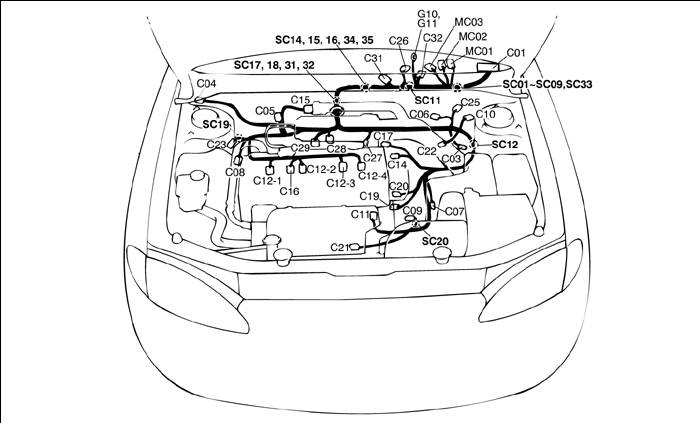

CONTROL HARNESS
CONTROL HARNESS
C01
Engine control module (ECM)
C19
Engine coolant temperature (ECT) sender
C03
Canister purge control valve (PCV)
C20
Engine coolant temperature (ECT) sender
C04
Cruise control actuator
C21
Front heated oxygen sensor
C05
Fuel pump check connector
C22
Mass air flow (MAF) sensor
C06
Brake fluid level sensor
C23
Knock sensor
C07
Intake air temperature (IAT) sensor
C25
Front wiper motor
C08
A/C compressor
C26
Engine control relay
C09
Crankshaft position (CKP) sensor
C27
Electronic power steering solenoid
C10
Acceleration sensor
C28
Vehicle speed sensor
C11
Oil pressure switch
C29
Rear heated oxygen sensor
C12-1
Injector #1
C31
Joint connector
C12-2
Injector #2
C32
Joint connector
C12-3
Injector #3
MC01
Connection with MAIN harness
C12-4
Injector #4
MC02
Connection with MAIN harness
C14
Ignition coil
MC03
Connection with MAIN harness
C15
Idle speed control (ISC) actuator
G10
Ground
C16
Camshaft position (CMP) sensor
G11
Ground
C17
Throttle position sensor (TPS)
