| ELECTRICAL TROUBLESHOOTING MANUAL | |
| Applies to: Hyundai Coupe/Tiburon 1998-2001 | |
| GROUP | |
| Body Electrical System | Wiring |
| ELECTRICAL TROUBLESHOOTING MANUAL | |
| Applies to: Hyundai Coupe/Tiburon 1998-2001 | |
| GROUP | |
| Body Electrical System | Wiring |
|

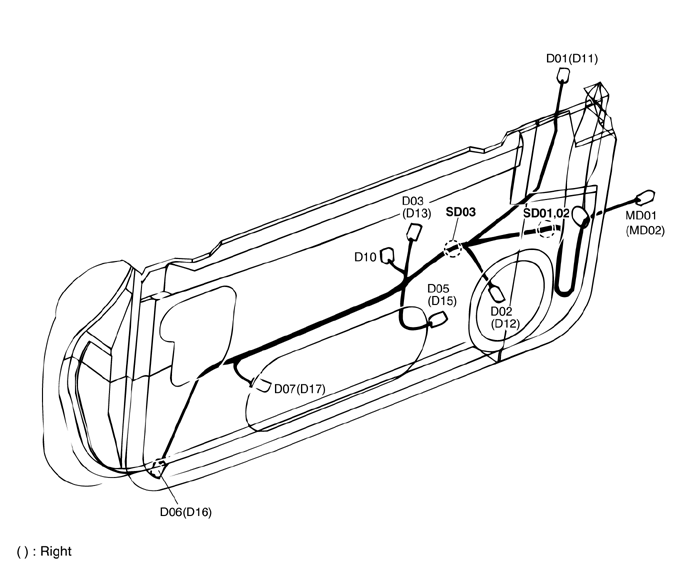

D01
|
Left door mirror |
D06 |
Left door lock actuator
|
|
D11 |
Right door mirror |
D16 |
Right door lock actuator |
|
D02 |
Left door speaker |
D07 |
Left door lamp |
|
D12 |
Right door speaker |
D17 |
Right door lamp |
|
D03 |
Power window main switch |
D10 |
Power door mirror switch |
|
D13 |
Right power window switch |
MD01 |
Connection with LH MAIN harness |
|
D05 |
Left power window motor |
MD02 |
Connection with RH MAIN harness |
|
D15 |
Right power window motor |
|
|
